The Forklift: a driving base with a tall post on the front, called the mast. A Medium Motor moves the forks up and down. A Touch Sensor knows when a pallet is on the forks.
Lifting the forks is easy. The hard part is knowing when it is safe to lift them. That is not just one question.
Is there a pallet on the forks? And is the mast still below the top? Both must be true. Check only one, and things go wrong. The forklift lifts nothing at all. Or it keeps going up when there is no mast left.
In the real world 5 min
Where you have seen it
Forklifts are used wherever goods are moved. You find them in big stores, at ports, on building sites and behind every supermarket. A big forklift can lift a tonne and a half on two steel forks. It carries it as fast as you walk.
A forklift moving pallets in a park. Photo: GlacierNPS / Wikimedia Commons (Public domain).
Why it is built that way
A forklift carries a heavy load at the front. A heavy weight at the back stops it tipping over. But that balance only goes so far. So real forklifts have lots of safety rules built in. The machine follows them, whatever the driver asks. A rule like this is called an interlock.
The best ones check two things at once. The mast will not tip forward unless the load is low and the handbrake is off. The machine will not drive unless the driver is in the seat and the seatbelt is on. One check is a wish. Two checks make a rule.
What would go wrong without it
Check only for a pallet, and the machine keeps lifting at the top. The motor pushes hard against the end of the mast. Check only the height, and it lifts with nothing on the forks. That wears out the moving parts for no reason. Neither check is wrong. Each one is just not enough.
Most real safety rules are two checks joined by the word “and”.
The main concept — one question made of two 6 min
The green and block is a hexagon with two hexagon holes in it. Put a yes-or-no question in each hole. That is called a condition. The whole block is true only when both are true.
<<[1 v] is pressed?> and <([D v] degrees counted) < (720)>> :: operators
A pallet is on the forks, and the mast is still below the top. One hexagon, made from two.
Look at the shapes again. Both halves are hexagons. The answer is a hexagon too. So it drops into a Switch just like a simple condition. Nothing about the Switch changes. You have just made the question more exact.
Pallet on forks?
Below the limit?
and gives
Forklift does
yes
yes
true
Lifts. The only safe case.
yes
no
false
Waits. The mast is already up.
no
yes
false
Waits. Nothing to lift.
no
no
false
Waits.
Four rows, and only one is true. That is what and is for. It is strict. An interlock needs to be strict.
Its two relatives
Block
True when
Reach for it when
<<> and <>>
Both halves are true.
All must be right before something happens. Safety rules.
<<> or <>>
One half is true, or both are.
Any one reason is enough. Stop buttons, alarms.
<not <>>
The one inside is false.
Saying “while there is no pallet” in a simple way.
Stop rules are usually or, not and. A machine should stop if the stop button is pressed, OR the load is too heavy, OR the door is open. Any one is enough. So safety uses both words, for opposite jobs. And says when you may go. Or says when you must stop.
ComponentControl5 min
Comparing and combining
A sensor that reports a number cannot be used to make a decision on its own — 23 is neither true nor false. An operator turns that number into an answer by comparing it with something.
Blocks reference
Block
What it does
<(x) > (50)>
True when the left value is bigger than the right.
<(x) < (50)>
True when it is smaller.
<<> and <>>
True only when both conditions are true.
<<> or <>>
True when at least one of them is.
Try it: which way round does it go?
Forget the symbols for a moment. A comparison is a question about position on a number line: is x to the left of the other number, or to the right? Left is smaller, right is bigger — and that is the whole of it.
Drag the orange x and the black marker, and change the comparison. The green stretch is every position of x that would make the answer true — so you can see where the answer flips before you get there. Turn not on and watch the green jump to the other side.
Drag either marker, or use the arrow keys.
-3 < 4true
is x to the LEFT of it?
< is true while x sits on the left. Slide x past the marker and it flips.
> is the same question the other way round — so exactly one of the two is true, unless the markers are on the same spot.
= is true for one single position out of twenty-one. Try landing on it. That is why a sensor is almost never compared with =: a reading passes straight through the exact number without ever being measured there.
not flips the answer, whatever it was. not (x < 4) covers everything x < 4 does not — including landing exactly on 4.
Try it: which numbers make it true?
The lab above asks one question at a time: is this x true? A robot never has just one x, though — a sensor reading slides up and down all the time, so what really matters is which stretch of the line makes the condition true. This one draws the whole answer at once.
Drag the circle to move the number you are comparing against, and change the comparison. Everything shaded green is a value of x that would make it true.
Drag the circle, or use the arrow keys. It moves in steps of 0.2.
x < 0.2x < 0.2
Every number to the left of 0.2 — but not 0.2 itself, so the circle is hollow.
Watch the circle, because it carries the part everyone gets wrong:
Hollow ○ — the boundary is not included. x < 0.2 shades everything left of 0.2 but leaves 0.2 itself out, because 0.2 is not less than 0.2.
Filled ● — the boundary is included. Choose = and nothing is shaded at all: one single number qualifies.
Now turn not on with x > 2 selected and watch two things happen together. The shading jumps to the other side, and the circle fills in — because “not greater than 2” means 2 or less, and 2 has to be part of it. That pairing is the whole reason a hollow circle is worth drawing.
Why a robot cares. Two conditions that look almost identical — light < 30 and not (light > 30) — differ by exactly one value, the reading of precisely 30. A robot sitting right on its threshold behaves differently under the two, and that is the sort of bug that only shows up occasionally and looks like a broken sensor.
Try it: and, or, not
These three join answers together rather than numbers. The trap is that English is looser than a program: “stop if it is close and the bumper is pressed” sounds like it covers both situations, when it covers neither on its own.
Flip the two conditions and watch the table. There are only four possible situations in total, and and and or differ on exactly two of them.
close: trueandbumper: falsefalse
close
bumper
and
or
true
true
true
true
true
false
false
true
false
true
false
true
false
false
false
false
and is fussy: it wants both. Three of the four rows are false.
and is true on one row out of four. It narrows — the robot acts less often, but more certainly.
or is true on three rows out of four. It widens — the robot acts more readily.
The two agree on the top and bottom rows and disagree in the middle. Whenever swapping one for the other seems to make no difference, you have only tried the rows where they agree.
Watch them decide
Two sensors are running below: an Ultrasonic reporting a number, and a Touch Sensor reporting true or false. Watch the comparison turn the number into an answer, and watch and and or disagree.
when program starts
forever
if distance < 15 and is pressed? then
stop moving
if distance < 15 or is pressed? then
play beep 60 for 0.2 seconds
Nothing is within 15 cm and the bumper is out. Both conditions are false.Something comes close. The comparison flips to true — the bumper has not been touched.It backs away, and instead the bumper is pressed. Now the other condition is the true one.Close AND pressed. Only now is «and» true — while «or» has been true ever since the first of them was.Finished. Four situations, and the two operators disagreed in three of them.
and false · or false
and was true in one row out of four. or was true in three. That is the whole difference, and it is why one of them makes a robot look broken.
The comparison is doing one job: it takes a reading that is neither true nor false and, by holding it against a number you chose, produces something a decision can use. The moment the blue fill crosses the black marker is the moment the answer changes.
Choosing the threshold
The number you compare against is a design decision, not a fact. “Close” for a parking sensor might be 15 cm; for a robot arm it might be 3. Pick it by measuring what the sensor actually reads in the situation you care about, then leave a margin.
Combining two conditions
and narrows: both must hold, so the robot acts less often but more certainly — stop only if something is close and the bumper is pressed. or widens: either will do, so the robot acts more readily — stop if something is close or the bumper is pressed.
In the four situations above, and was true in one of them and or in three. That is the practical difference: swapping one for the other does not adjust a robot slightly, it changes how often it reacts at all.
And is strict. Or is easy-going. Pick the one that matches what you would say out loud.
▶The SwitchWhere the two-part condition goes. It is the same Switch as in Lessons 6 and 8.Show meHide
ComponentControl6 min
Making a decision
Up to now a robot has been able to wait for a sensor. Deciding is different: the robot checks the sensor and does one thing or another depending on the answer — and then carries on either way.
Blocks reference
Block
What it does
if <> then
end
Runs the blocks inside only when the condition is true. Otherwise skips them.
if <> then
else
end
Runs one set of blocks when true and a different set when false.
Deciding again and again
A decision made once, at the start, is almost never what you want. Here are two robots with the identical if-else, testing the identical sensor against the identical number — one inside a loop and one not.
decision inside a loop
forever
if distance < 15 then
stop moving
else · start moving
the same decision, once
if distance < 15 then
stop moving
else · start moving
247checks · in a loop1check · once only
Nothing is close, so both robots ask «is the wall within 15 cm?», both hear no, and both take the else branch and drive.The left robot is asking again, and again, and again. The right one asked once and has finished asking.Under 15 cm. The left robot's next check says stop, so it stops. The right robot has no next check.Same condition. Same sensor. Same number. Only the loop is different.Finished. One robot is parked; the other is against the wall.
wall far
A decision is only worth as much as the last time it was made. Inside a loop, that is a few milliseconds ago.
Nothing is wrong with the right-hand program’s decision. It asked the question, got a truthful answer, and acted on it correctly. It simply never asked again, and the world moved on. Decisions belong inside a loop, so the robot keeps re-deciding as things change.
when program starts :: events hat
forever
if <([4 v] distance in [cm v] :: sensors) < (15)> then
stop moving :: movement
else
start moving [straight: 0] :: movement
end
end
Four shapes, and how to choose
Once there is more than one question, decisions can be arranged in four ways. They look nearly identical stacked up in the editor, which is exactly why they get muddled — the thing that differs is not what the blocks say, it is which routes through them exist.
One question sorts them almost completely:
Are the questions…
Use
How many bodies can run
independent — any combination can be true
separate ifs
none, some, or all
one question, two answers
if / else
exactly one
the second only matters when the first is true
nested if
one, and only via the outer
mutually exclusive cases — exactly one should win
chained if / else
exactly one, the first that matches
Separate ifs — independent questions
Each if is asked no matter what the others answered, so any number of them can fire on the same pass. That is the right shape when the conditions genuinely have nothing to do with each other.
Both questions are always asked, so one pass can turn on the lamp, the fan, both, or neither. Dark and hot are unrelated — there is no reason answering one should stop the other being asked.
forever
if <[3 v] is ambient light intensity [< v] (20) %? :: sensors> then
[A v] start motor [clockwise v] :: motors
end
if <[4 v] is distance [< v] (15) [cm v]? :: sensors> then
[D v] start motor [clockwise v] :: motors
end
end
if / else — one question, two answers
Exactly one branch runs, every time. Reach for this whenever the robot must do something either way — and in preference to two ifs testing opposite conditions, which is the same idea written twice and can drift apart.
There is no route through this that runs both boxes, and none that runs neither. That guarantee is the reason to prefer it over two opposite ifs.
Nested if — a follow-up question
Putting one if inside another means the inner question is only ever asked when the outer one is true. Use it when the second question is meaningless otherwise: there is no point asking which side an obstacle is on when there is no obstacle.
The inner question sits on the outer one's yes route, so it is only reached when something is close. If nothing is close, the robot never asks which side it is on — because there is nothing to have a side.
if <[4 v] is distance [< v] (15) [cm v]? :: sensors> then
if <([2 v] angle :: sensors) < (0)> then
start moving [right: 50] :: movement
end
end
When not to nest. If you only want “both true” and nothing happens at the outer level, an and says it in one block and reads better:
if <<[4 v] is distance [< v] (15) [cm v]? :: sensors> and <([2 v] angle :: sensors) < (0)>> then
start moving [right: 50] :: movement
end
Nesting earns its place when something happens at the outer level too, or when there is an else at each level and the two mean different things.
Chained if / else — one winner out of several
This is the shape for a list of cases where exactly one should win: colour bands, distance bands, speed ranges. EV3 Classroom has no else-if block, so you build a chain by putting the next if inside the else of the last one.
Each question is only reached down the previous one's no route. The first that matches acts, and everything below it is never even asked — which is what makes overlapping bands safe.
And here is why it matters, because this is the single commonest bug in this whole module. Three bands written as three separate ifs are each perfectly correct, and together they are wrong: a reading of 20 is under 30 and under 60 and under 90, so all three run and the last one to run is the one that sticks.
three separate ifs
if light < 30 then
stop
if light < 60 then
go slowly
if light < 90 then
go fast
chained — if / else / if
if light < 30 then
stop
else
if light < 60 then
go slowly
else
go fast
↑ the rest is inside the else — never asked
3bands matchedgo fastseparate ifs dostopchained does
Separate ifs: 3 matched, last one winsChained: first match wins, rest never asked
The sensor reads 20 — a dark surface. Both programs should stop.The three separate ifs each ask their own question. 20 is under 30, so it stops… then 20 is also under 60, so it goes slowly… then 20 is under 90 too, so it goes fast. All three ran, and the last one wins.The chained version asked the same first question, got `yes`, and stopped. The other two live inside its else, so they were never even asked.Slide the reading up to 75 and both agree again — because only one band matches. The bug only shows itself where the bands overlap, which is most of the range.Finished. Same three bands, same reading — two different answers, because one shape stops asking and the other does not.
reading 20
Separate ifs are not wrong here so much as unguarded: nothing stops a second one matching. Chaining is what makes “the first one wins” true.
The rule to carry away: if the cases are meant to be exclusive, they must be made exclusive. Chaining does it by construction. Separate ifs only work if you are careful to write non-overlapping bands yourself — light < 30, 30 to 60, 60 and over — which is more to get right and easy to break later.
Why it matters
This is the point at which a machine stops following a script and starts responding. A thermostat, an automatic door, a robot vacuum — all of them are a decision inside a loop.
Say this out loud before you go on: “And means both, every time.”
What’s in this build 4 min
Part
What it is doing here
EV3 Intelligent Brick
Sits at the back. Its weight stops the model tipping, just like on a real forklift. Move it forward, and the model tips over with a load.
Large Motor ×2 — the drive
Ports B and C. They drive as a pair. So the forklift comes at the pallet straight, not at an angle.
Medium Motor — the mast
Moves the forks up and down. It must hold when it stops. If not, the pallet comes straight back down.
Touch Sensor — the pallet detector
Sits at the back of the forks. A pallet pushed all the way on presses it. A pallet only half on will not. That is right, not a mistake.
The pallet (not electronic)
Build one that the forks can pick up every time. If it gets stuck, you cannot test with it.
Find the mast’s top before you program it
Wind the mast up by hand until it will not go further. Do not force it.
Wind it back to the bottom. Count the turns. Times that by 360. Your limit should never be bigger than that number.
Set your limit a little below that. A limit right at the top makes the motor push hard against the end on every run.
Push a pallet onto the forks. Check that the Touch Sensor clicks. Then pull it half off. Check that it lets go.
Ports — and the rule 4 min
Sensors go in ports 1, 2, 3, 4. Motors go in ports A, B, C, D. You cannot swap them. If you do, nothing warns you. The robot just will not work.
Part
Port
Why this one
Left drive (Large)
B
B is left, as the Movement blocks assume.
Right drive (Large)
C
C is right.
Mast (Medium)
D
Not one of the driving pair. Its port is in the condition, and in the lift blocks too.
Touch Sensor
1
Touch is always port 1 in this course.
Check your own build now:
Stand behind the forklift. Left drive goes in B. Right goes in C. Mast goes in D. Touch goes in 1.
Lay the mast cable so the forks can go all the way up without pulling it. A cable that goes tight at the top stops the mast where you did not plan.
Wind the mast to the bottom before every run. Then the count always starts from the same place.
Connect the Brick 4 min
Two routes, and either is fine. USB is the reliable one and the one to fall back on when a room’s Bluetooth is busy; Bluetooth leaves the robot free to move, which some models need.
▶How to connect the BrickUSB and Bluetooth, step by step, with a photograph of every screen. Open it if you have not done this before — or if pairing is not working.Show meHide
USB — the reliable one
Switch the Brick on with the dark grey centre button.
Cable into the Brick’s PC port — the small square socket beside the numbered ports, not one of the numbered ones.
Other end into the computer.
Bluetooth — name it first
Do these in order. Naming the Brick after you go looking for it in the list is how groups end up driving each other’s robots.
Name your Brick. On the Brick: Settings (the spanner) → Brick Name. Type something nobody else will pick, then press the tick. Every Brick is called EV3 until somebody changes it.
Turn Bluetooth on. Settings → Bluetooth. Tick Bluetooth and Visibility. Leave iPhone/iPad/iPod unticked.
Connect from EV3 Classroom. Click the Brick icon at the top of the programming area, find your Brick by name, and click Connect.
Say yes on the Brick. It asks “Connect?” with the computer’s name — choose the tick, then accept the passkey, which is already 1234.
Where to read it. The name sits in the bar across the very top of the screen, on every screen — so you can check which Brick you are holding at any moment without going into a menu. This one is EV3VE. A Brick nobody has renamed says EV3.Step 3, and the reason step 1 exists. Three Bricks in range — read the name before you click Connect. Pairing with the wrong one is not an error: it works perfectly, on somebody else’s robot.
Step 2.Bluetooth switches the radio on; Visibility is what lets the computer find you. With Visibility off your Brick works perfectly and simply never appears in the list.Step 4. Look at the Brick. It asks whether to accept and names the computer. Choose the tick.Then the passkey, already 1234. Press the tick again and you are connected.
The two failures, every class, every time. The Brick has gone to sleep while you were building — press the centre button to wake it. Or you have paired with the group at the next table, which is why the name matters.
The long version, including Port View and how to read the port tiles, is in the Brick & Bluetooth guide.
Use Bluetooth. The forklift drives to the pallet. A cable across the floor would get in its way.
Confirm the connection 2 min
Check the Brick icon. Is it connected?
Three motor tiles and one sensor tile. Large on B and C, Medium on D, Touch on 1.
Test each half of your condition on its own. Press the pallet sensor and watch its tile. Then wind the mast and watch the degrees on D. If one half is wrong, the and can never be true. The forklift will never lift.
Look at the mast’s count at the bottom. It should be near zero after a reset.
Change it and test 8 min
Wind the mast back to the bottom before every run. Try all four rows of the table, not just the one where everything works.
Take out the height half. Only the pallet check is left. Hold the pallet on and let it run. The mast gets to the top and keeps pushing. Stop it, and put the half back.
Now take out the pallet half. Only the height check is left. It lifts with nothing on the forks. Neither half alone is the rule.
Change and to or. Guess what will happen. Then run it and find out. This is the most useful minute of the lesson.
Put and back. Change the limit to 180. Now the top is much lower. Does it still stop neatly?
Add a third condition with a second and. Only lift when a pallet is on, the mast is below the limit, and the mast has already moved a little: > (0). What does that change? Is it better?
Step 3 is the one to talk about. With or, the forklift lifts when there is a pallet or when it is below the limit. It starts below the limit. So it lifts straight away, with nothing on the forks. It keeps going to the top. It is the same two checks. But a different word joins them, and the interlock is gone.
Test a two-part condition one half at a time. Together, they only say yes or no. They never say which half was wrong.
Build it 15 min
Build the model before you read any further. Everything after this is about making it do something, and none of it will make much sense with nothing on the table in front of you.
Fullscreen it while you build — you can pause and scrub with the player's own controls.
Check the finished build against the picture before you switch anything on. A motor mounted the wrong way round is far easier to spot now than it is to debug later, when it looks like a program fault.

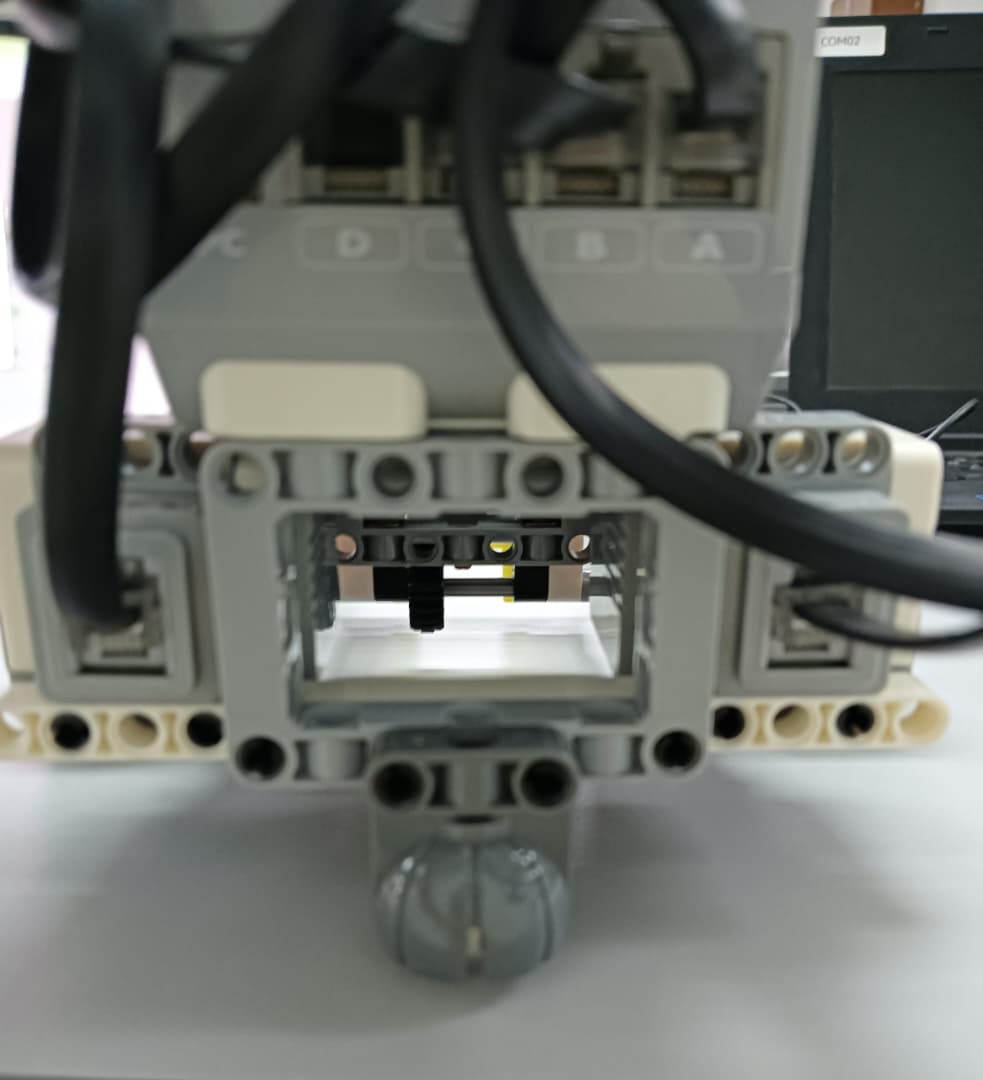

This is what you are building: the EV3 Forklift Robot.

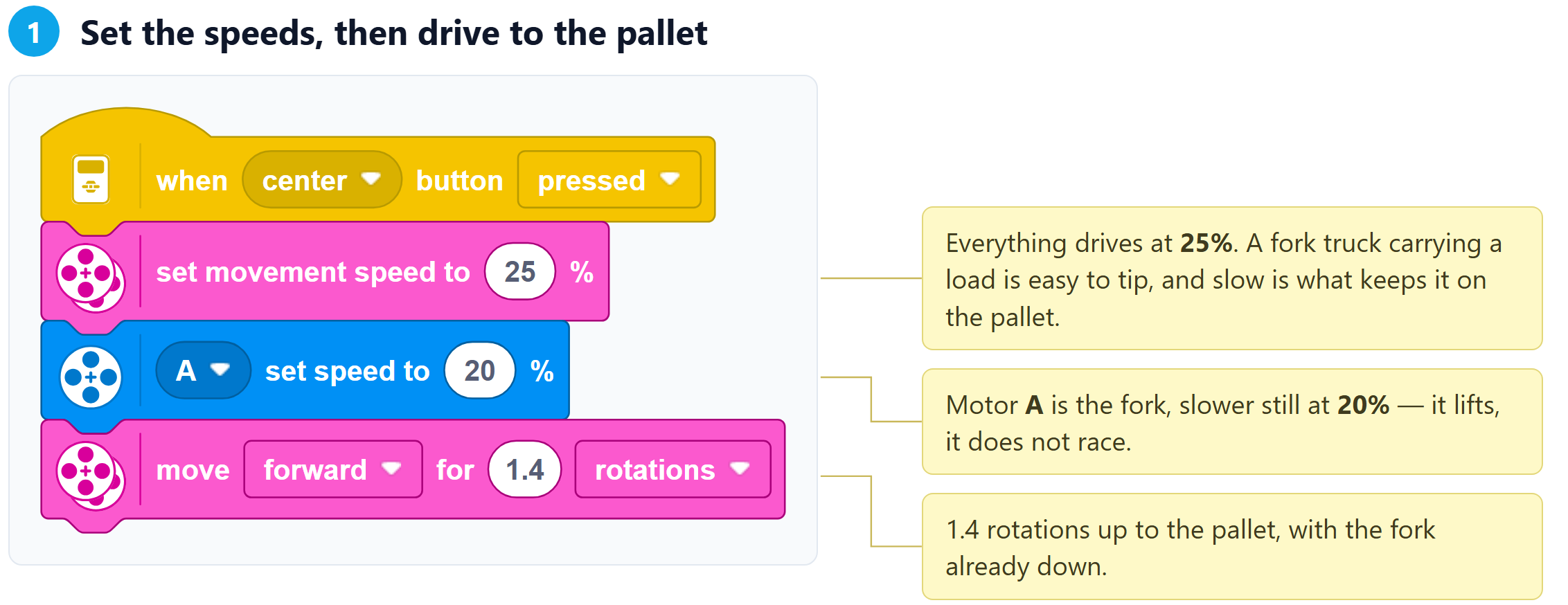

One press of Centre and the truck drives to the pallet, lifts, carries the load round a
turn, and sets it down. It is a whole pick-and-place, start to finish, with no sensors —
every distance is a measured number of wheel rotations.
⚠️ The program does more than the task says

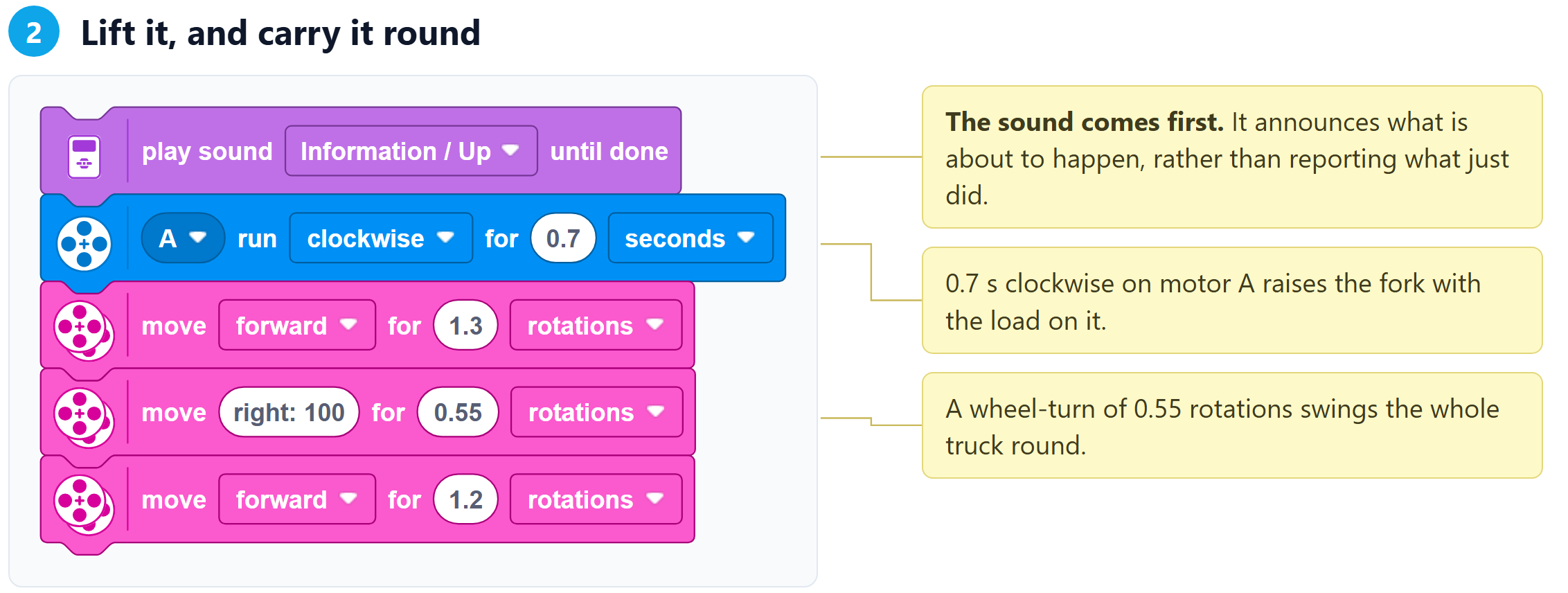

The task describes three steps: lower the fork, drive to the object, lift. The file does
those and then keeps going — it carries the load 1.3 rotations, turns, drives 1.2 more and
lowers the fork to place it. There is also no "lower" at the start; the fork is assumed to
begin already down.
Neither is wrong. But a class given the task text and shown this file will find a mismatch,
so decide which one the lesson is teaching before the session.
Worth noticing
The sound comes before the movement, every time. "Up" plays, then the fork rises.
It announces what is about to happen rather than reporting what just did.

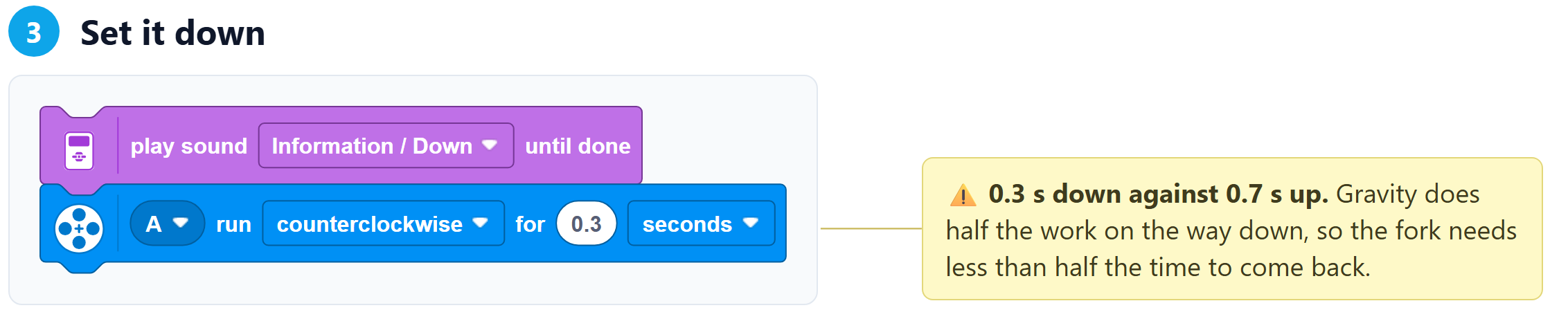

The fork is not symmetric: 0.7 s up, 0.3 s down. Gravity does half the work on the
way down, so it needs less than half the time to come back. Match the two and the fork
drives itself into the floor.
Everything is rotations, nothing is sensed. Move the pallet 5 cm and the program is
wrong. That is the honest limit of this lesson, and what Challenge 3 starts to fix.
Challenges 27 min
Work through them in order — each is harder than the last. The extra challenge comes after all three, and it is meant to make you plan before you build.
Challenge 1
Press the center button, then it will
1. lift down and make sound "down"
2. move forward towards the object
3. lift up and make sound "up"
4. place it at target location, and make sound "okay-dokey"
5. move back to another target location
Fullscreen it while you build — you can pause and scrub with the player's own controls.
Log in to see hints.
Challenge 2
Press the center button, then it will
1. lift down and make sound "down"
2. move forward towards the 1st object
3. lift up and make sound "up"
4. place it at 1st target location, and make sound "one"
5. move backward
Press the up button, then it will
1. lift down and make sound "down"
2. move forward towards the 2nd object
3. lift up and make sound "up"
4. place it at 2nd target location, and make sound "two"
5. move backward
Fullscreen it while you build — you can pause and scrub with the player's own controls.
Log in to see hints.
Challenge 3

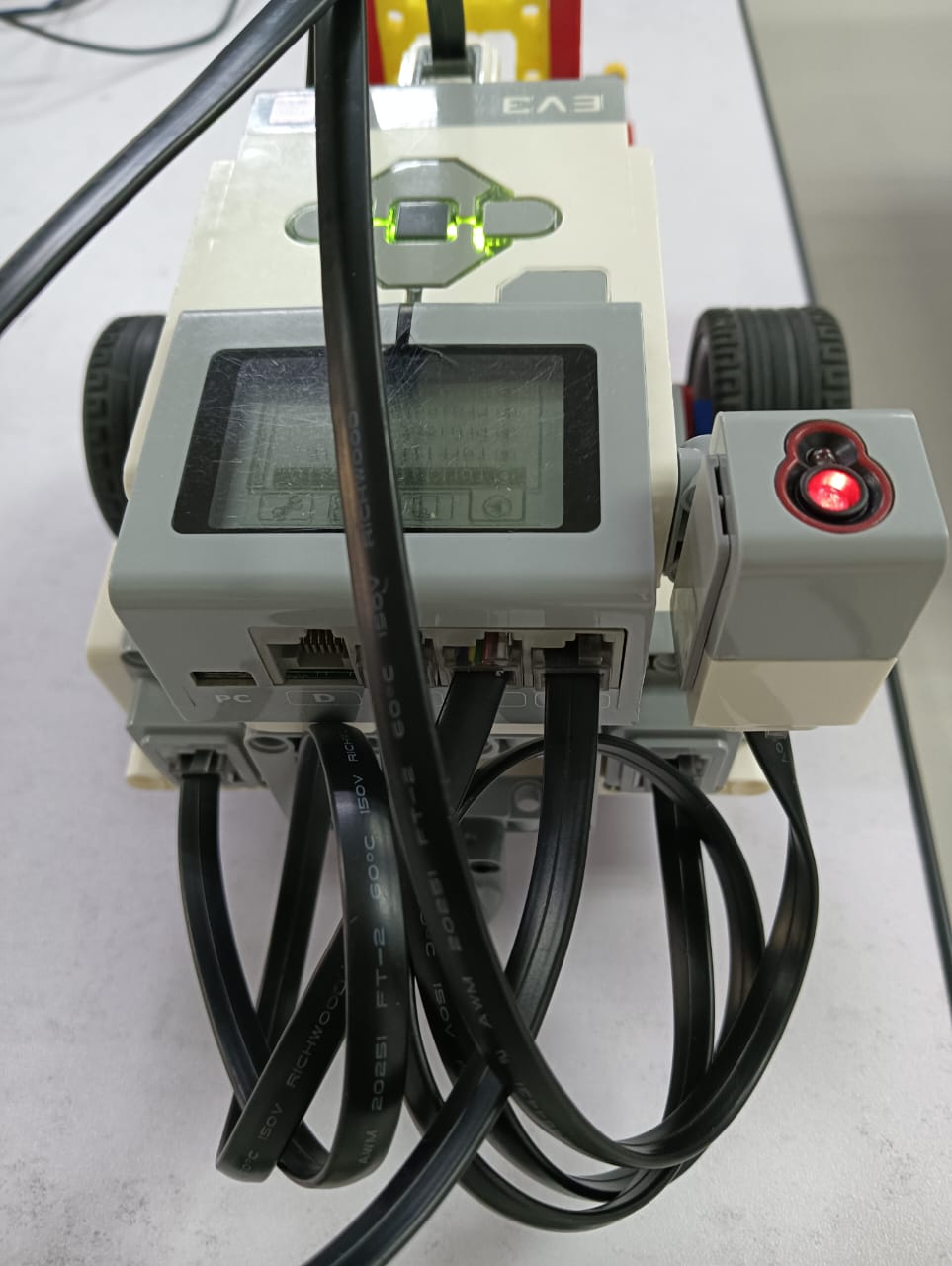

Attach a colour sensor on the robot
1. When the colour sensor detects red and the center button is pressed, it will sound "Red" > it will pick the object and place it at the left side
2. When the colour sensor detects blue and the center button is pressed, it will sound "Blue" > it will pick the object and place it at the right side
