Challenge 1
Cross an arena and recover from at least three collisions without ever being touched by a person. The bump count on screen must match the number of collisions you saw.
What you are building 3 min
The Auto Floor Mopper: a driving base with a mopping head and a bumper on the front wired to a Touch Sensor. It cleans until it hits something, and then it deals with it.
Every sensor you have used so far has been there to stop something happening. The saw would not start, the forklift would not lift, the garden robot would not water the wall.
This one lets the crash happen. The bumper is not a warning; it is a report that the robot has already hit the wall. What matters is what it does next.
In the real world 5 min
Where you have seen it

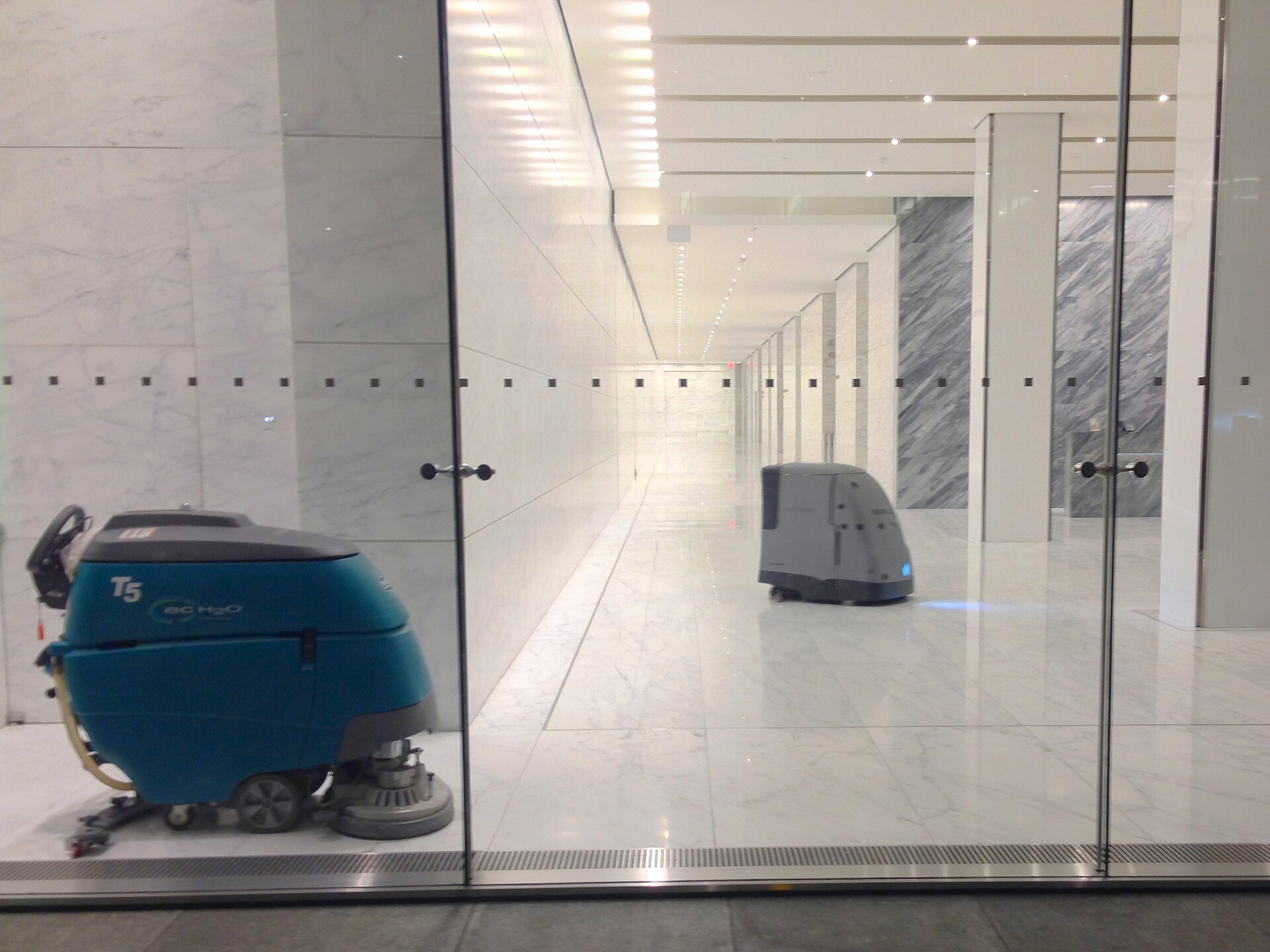

Cleaning machines are everywhere now — walk-behind scrubbers in supermarkets and airports, and increasingly robots doing the same job unattended overnight.
Why it is built that way
The robot on the right has expensive sensors that look ahead — and it still has a bumper. Every one of them does.
Because sensing ahead does not work every time. Glass is invisible to some sensors, a chair leg is thin enough to fall between beams, and something can move into the robot’s path faster than it can react. The bumper is the layer underneath, for everything the clever sensors missed — and the machine is designed on the assumption that they sometimes will.
You will have seen the same thinking on a household robot vacuum: it wanders, bumps, backs off, turns a little and carries on. It is not following a map. It is recovering, over and over, and covering the room by persistence.
What would go wrong without it
A machine that only prevents has nothing to do when prevention fails. It either stops dead and waits for a human — which is useless for an overnight cleaner — or it keeps driving into the wall until the battery runs out.
Design for things going right, and the first surprise stops you. Design for recovery and the machine keeps working.
The main concept — back, turn, carry on 6 min
The recovery is three steps, always in the same order, and it is worth memorising because you will write it again and again.
| Step | Why |
|---|---|
| 1 · Back away | You are touching the obstacle. Nothing else can work until you are not — a robot that turns while pressed against a wall just grinds. |
| 2 · Turn | Change direction, or you will drive straight back into the same thing. |
| 3 · Carry on | Return to normal work. The recovery is finished and the machine forgets about it. |
if <[1 v] is pressed?> then move [backward v] for (1) [rotations v] :: movement move for (0.5) [rotations v] at (35) (-35) % speed :: movement end
Notice there is no else. Recovery is genuinely a “sometimes” behaviour — the Lesson 13 shape rather than the Lesson 14 shape — because most passes of the loop have nothing to recover from.
The order is not negotiable
Turn before backing away and the robot pivots while jammed against the wall: one wheel grips, the other scrabbles, and it ends up at an angle still touching. Back away first and it has room to turn cleanly.
The bumper must release. Reverse far enough that the sensor is definitely no longer pressed. If the robot backs off two centimetres and the bumper is still touching, the next pass of the loop sees a fresh bump and it reverses again, for ever.
Recovery has a failure mode
Put this robot in a corner and watch what happens. It bumps one wall, reverses, turns into the other wall, bumps, reverses, turns back into the first. It can do that all day.
Real machines handle this by counting — if there have been several bumps in quick succession, do something bigger: a longer reverse, a much larger turn, or give up on that area. And counting events is exactly what Lesson 26 gave you.
The Touch Sensor
The Touch Sensor is the simplest input the EV3 has: a button that is either pressed or not. That sounds trivial, but it is how a robot knows it has hit a wall, reached the end of a track, or been told to start by a person.
released
pressedBlocks reference
| Block | What it does |
|---|---|
wait until <[1 v] is pressed? :: sensors> | Holds the program here until somebody presses the sensor. |
<[1 v] is pressed? :: sensors> | Reports true or false. Drop it into a condition to make a decision rather than a wait. |
[1 v] when [bumped v] :: events hat | Starts a whole stack of its own. The dropdown chooses the moment: pressed, released or bumped. |
Three different events
A button is not only “pressed”. One press is three things: the moment it goes down, the time it stays down, and the moment it comes back up. Watch what a single press does to three programs at once.
when program starts
forever
if 1 is pressed? then
change count by 1
versus two hat blocks
1 when pressed
1 when bumped
0is pressed? in a loop0when pressed0when bumped
In a loop: 0 answers from one pressBumped: exactly one
Nobody is touching the sensor. All three programs are watching it.
The middle counter is the one that surprises people. Nothing is wrong with it — a loop really does check that fast, and every check really is a separate answer.
Nothing there is broken. A loop really does get round hundreds of times a second, and each time it asks is pressed? the honest answer is still yes — so if that loop plays a sound or counts something, it does it hundreds of times from one finger. The two hat blocks each fire once, and they fire at different moments: pressed the instant the button goes down, bumped only when it comes back up.
The three options, and what each is for:
- Pressed — the button is down right now. Good for “hold to run”.
- Released — it is up again. Good for acting when somebody lets go.
- Bumped — pressed and released. This is what you want for “click to start”, because it will not fire repeatedly while a finger stays down.
The classic bumper
when program starts :: events hat set movement motors to [B v] and [C v] :: movement start moving [straight: 0] :: movement wait until <[1 v] is pressed? :: sensors> stop moving :: movement
The robot drives until something presses the sensor. Note that the movement is started unmeasured on purpose — the sensor decides when to stop, not a distance.
Why it matters
Touch sensors are everywhere in machines you cannot see into: a lift knows the doors are shut, a printer knows the lid is closed, a washing machine will not spin until it is latched. They are safety devices as much as inputs.
Back away first. Always. You cannot manoeuvre out of something you are still touching.
Counting eventsThe variable from Lesson 26 — here it counts bumps, which no sensor can do for you.Show meHide
Variables
Why anybody needs one
Long before there were computers, people had exactly this problem. A shepherd counting sheep through a gate, a trader counting sacks of grain, a builder counting days — none of them can hold the number in their head while they get on with the work. So they scratched a mark on a wall, cut a notch in a stick, or wrote a number on a piece of paper. The number lived outside the person, in a place they had agreed on, and they could go back to it, read it, and change it.
Better still, once the number is written down somebody else can use it. Watch these two: one of them counts and writes, the other never sees a single animal and simply reads the wall.
Abby never remembers the numberBen never sees a henThe wall holds it for both
Abby has a gate and a wall. Before a single hen comes through she chalks 0 on the wall — that is where the number is going to live.
Notice what never happens: Ben never asks Abby. He does not need to — the number is not in her head, it is on the wall, and the wall is there for anyone who needs it.
Neither Abby nor Ben is holding the number — the wall is. And notice what never happens: Ben does not ask Abby. He does not need to, because the count is not in her head. It is in a place they both agreed on, which is what makes it useful to more than one of them.
That is all a variable is. The robot cannot hold a number in its head either, so you give it a wall of its own, write a name at the top so everyone knows which wall is which — score, count, degree_turn — and the program can read what is on it and write something new. One part of the program writes; another part reads. Exactly Abby and Ben.
The paper, and the two things you can do to it
Say we are counting rotations of a motor. Before we start we write 0 on the paper. Every time the motor completes a turn we cross out what is there and write one more: 0 becomes 1, then 2, then 3. That is change — it has to read the old number to work out the new one.
set is the other thing you can do, and it is completely different: rub the whole paper out and write the number you want. It does not care what was there. Press the buttons and watch what happens to the crossings-out.
score
0
The paper starts blank, so we write 0 on it. That is what a variable is: a place to keep a number while the robot works.
- change leaves a trail — every value follows from the one before it. This is what counting is.
- set wipes the sheet. Use it to start a count, never to continue one.
- Press set score to 0 after counting up a few times and watch the whole history vanish. That is what happens to a count when a set block ends up in the wrong place — and it is the commonest variable bug there is.
Blocks reference
| Block | What it does |
|---|---|
set [count v] to (0) | Puts a value in, replacing whatever was there. |
change [count v] by (1) | Adds to what is already there. |
(count) | Reports the current value, for use in a comparison or on the display. |
Set, or change?
set replaces; change adds. Counting things needs change. Starting a count needs set. Both programs below have both blocks — the only difference is whether the set block is inside the loop or above it.
set before the loop
when program starts
set count to 0
repeat 4
A run clockwise for 1 rotations
change count by 1
set inside it
repeat 4
set count to 0
A run clockwise for 1 rotations
change count by 1
Before the loop: counted 0Inside the loop: stuck at 0
Both programs count the turns of a motor. The left sets the count to zero before the loop; the right sets it inside.
Both programs contain both blocks. Only the position of set [count] to 0 is different.
The count on the right is not broken; it is being told to start again on every pass. Each time round the loop it is wiped back to zero and then changed by one, so the honest answer is always 1 — while the motor cheerfully turns four times. A counter stuck at 1 almost always means a set block that has slipped inside the loop.
Anything oval is a number you can pick up
EV3 Classroom tells you what a block does by its shape, and once you have noticed that, a whole set of questions answers itself:
- Oval — reports a number. The blue degrees counted, the timer, a distance, your own variable.
- Pointed — reports true or false. These go in an if or a wait until, not in a variable.
- Block-shaped — does something. These stack up; they do not fit inside anything.
So when a slot is oval, any oval fits it — and it does not matter in the least where that number came from. You can take the motor’s own A degrees counted and keep it in a variable you named degree_turn, then compare that with a number later. Pick an oval below and watch the same one drop into all three kinds of slot.
pick an oval
the same oval fits all three
set degree_turn to A degrees countedkeep it in a variable of your own
A degrees counted + 10do arithmetic with it
A degrees counted > 50compare it with a number
Every one of those slots is oval-shaped, and A degrees counted is an oval — so it drops in. Nothing about where the number came from matters.
This is what makes a variable more than a counter. A sensor reading is true only at the instant you read it; copying it into a variable freezes it, so the robot can compare where it is now against where it was when something happened:
when program starts :: events hat [A v] reset degrees counted :: motors set [degree_turn v] to ([A v] degrees counted :: sensors) start moving [right: 30] :: movement wait until <(([A v] degrees counted :: sensors) - (degree_turn)) > (400)> stop moving :: movement
Read the condition aloud: how far the motor has gone now, minus where it was when we started, is more than 400. Both are ovals, so both can go into a subtraction, and the subtraction is an oval too — which is why it can go into a comparison. Ovals nest inside ovals as deep as you need.
Reset at the start, every time
A variable keeps its value after the program ends. Run the program again without setting it back and the second run begins where the first left off — the count starts at 14, the robot thinks it has already done the job. Every variable a program changes must be set to its starting value at the top.
Why it matters
A variable is the difference between a machine that repeats a fixed routine and one that responds to how things have gone — counting parts, tracking a score, remembering where it started.
Say this back before moving on: “Reverse, turn, carry on.”
What’s in this build 4 min
| Part | What it is doing here |
|---|---|
| EV3 Intelligent Brick | Watches the bumper while driving, and counts how many times it has been hit. |
| Large Motor ×2 — the drive | Ports B and C. Driven as a pair for straight running, and deliberately opposed for the recovery spin. |
| Medium Motor — the mop | Works the mopping head. Runs throughout, using the non-waiting start from Lesson 7. |
| Touch Sensor — the bumper | Mounted behind a bumper bar that sticks out wider than the robot. A bumper narrower than the machine lets the corners hit things the sensor never feels. |
Test the bumper from every angle
- Push the bumper straight on. Does it click?
- Push it on the far left corner, then the far right. Both must click too — this is where most bumpers fail.
- Push it at an angle, as if the robot had met a wall diagonally. That is the commonest real collision.
- Let go and check it springs back and releases. A bumper that stays in is a robot that reverses for ever.
Ports — and the rule 4 min
Sensors go in ports 1, 2, 3, 4. Motors go in ports A, B, C, D. They are not interchangeable, and nothing will tell you politely if you swap them.
| Part | Port | Why this one |
|---|---|---|
| Left drive (Large) | B | B is left, as the Movement blocks assume. |
| Right drive (Large) | C | C is right. |
| Mop (Medium) | D | Off the movement pair, running at its own speed. |
| Touch Sensor (bumper) | 1 | Touch is always port 1 in this course. |
Check your own build now:
- Standing behind it, left in B, right in C, mop in D, Touch in 1.
- Route the bumper cable with slack, so the bumper can move without tugging its own wire.
- Set up an arena with walls — books on edge work well. You want it to hit things; that is the lesson.
- Include one corner in your arena. You will need it for step 10.
Connect the Brick 4 min
Two routes, and either is fine. USB is the reliable one and the one to fall back on when a room’s Bluetooth is busy; Bluetooth leaves the robot free to move, which some models need.
How to connect the BrickUSB and Bluetooth, step by step, with a photograph of every screen. Open it if you have not done this before — or if pairing is not working.Show meHide
USB — the reliable one
- Switch the Brick on with the dark grey centre button.
- Cable into the Brick’s PC port — the small square socket beside the numbered ports, not one of the numbered ones.
- Other end into the computer.
Bluetooth — name it first
Do these in order. Naming the Brick after you go looking for it in the list is how groups end up driving each other’s robots.
- Name your Brick. On the Brick: Settings (the spanner) → Brick Name. Type something nobody else will pick, then press the tick. Every Brick is called
EV3until somebody changes it. - Turn Bluetooth on. Settings → Bluetooth. Tick Bluetooth and Visibility. Leave iPhone/iPad/iPod unticked.
- Connect from EV3 Classroom. Click the Brick icon at the top of the programming area, find your Brick by name, and click Connect.
- Say yes on the Brick. It asks “Connect?” with the computer’s name — choose the tick, then accept the passkey, which is already 1234.
EV3.The two failures, every class, every time. The Brick has gone to sleep while you were building — press the centre button to wake it. Or you have paired with the group at the next table, which is why the name matters.
The long version, including Port View and how to read the port tiles, is in the Brick & Bluetooth guide.
Bluetooth. This robot drives into things on purpose and reverses out of them. A cable will be run over within about two bumps.
Confirm the connection 2 min
- Check the Brick icon: connected, or not.
- Three motor tiles and one sensor tile.
- Press the bumper and watch its tile, then release and watch it go back. Both directions matter today — a sensor that reports the press but not the release gives a robot stuck in recovery.
- Turn each wheel and confirm B is left and C is right, or the recovery spin will go the wrong way.
Make it move 10 min
Mop forward until something is hit, recover, carry on — and keep count of how many times it happened.
when program starts :: events hat
set movement motors to [B v] and [C v] :: movement
set movement speed to (30) % :: movement
set [langgar v] to (0)
clear display :: display
write [MOP] at line (1) :: display
[D v] start motor at (70) % speed :: motors
forever
start moving [straight: 0] :: movement
if <[1 v] is pressed?> then
change [langgar v] by (1)
write (langgar) at line (4) :: display
play beep (50) for (0.2) seconds :: sound
move [backward v] for (1) [rotations v] :: movement
move for (0.5) [rotations v] at (35) (-35) % speed :: movement
end
end- set langgar to 0 — the bump counter, from Lesson 26. “Langgar” is Malay for collide.
- start moving at the top of the loop — non-waiting, so the robot drives on while the Switch is checked. It is re-issued every pass, which is harmless and means driving resumes automatically after every recovery.
- The Switch — no else. Most passes do nothing at all.
- Count, announce, reverse, spin — in that order. The count goes up first so the screen is right before the robot moves, and the reverse comes before the spin for the reason in section 4.
What success looks like: the mopper crosses the arena, hits a wall, beeps, backs off, turns, and sets off in a new direction — without stopping and without being touched. The number on screen goes up by exactly one per collision.
If it reverses repeatedly from one bump, the reverse is too short and the bumper has not released. Make it 1.5 rotations. If the count jumps by two or three per hit, the bumper is bouncing — the same fix helps.
Change it and test 8 min
Same arena every run. Watch the bump count — it tells you how hard the robot is finding your layout.
- Swap the reverse and the spin so it turns first. Run it into a wall. Watch it grind round while still pressed against it, then put them back.
- Shorten the reverse to 0.2 rotations. Now the bumper may not release. Watch what a robot stuck in recovery looks like.
- Change the spin to 0.25 rotations — a small turn. Does it escape a flat wall? Does it escape a corner?
- Drive it into a corner deliberately and let it run. Count how many bumps it takes to get out, or whether it gets out at all. This is the failure mode from section 4, live.
- Fix the corner. Add a Switch that checks
<(langgar) > (5)>and does something bigger — a longer reverse and a half turn — then setslanggarback to 0. Test it in the same corner.
Step 5 is where three lessons meet. The bumper is the sensor from Lesson 16, the decision is the Switch from Lesson 13, and the count that makes “stuck” detectable at all is the variable from Lesson 26. None of them could have solved it alone.
A recovery that always does the same thing can loop for ever. Counting is how a machine notices it is not getting anywhere.
