Challenge 1
Drive a square that finishes within a hand's width of its start, showing the measured angle after each turn.
What you are building 3 min
The Tank Bot: a low, heavy vehicle running on two rubber tracks, with a Gyro Sensor bolted flat to the chassis.
It has no steering. Like every tracked machine, it turns by running one track forward and the other back — dragging itself round sideways. That is called skid steering, and it is why this model needs the Gyro.
By the end of the lesson the Tank Bot will drive the outline of a square, a pentagon or a hexagon — turning to a real angle each time, and coming back to where it started.
In the real world 5 min
Where you have seen it

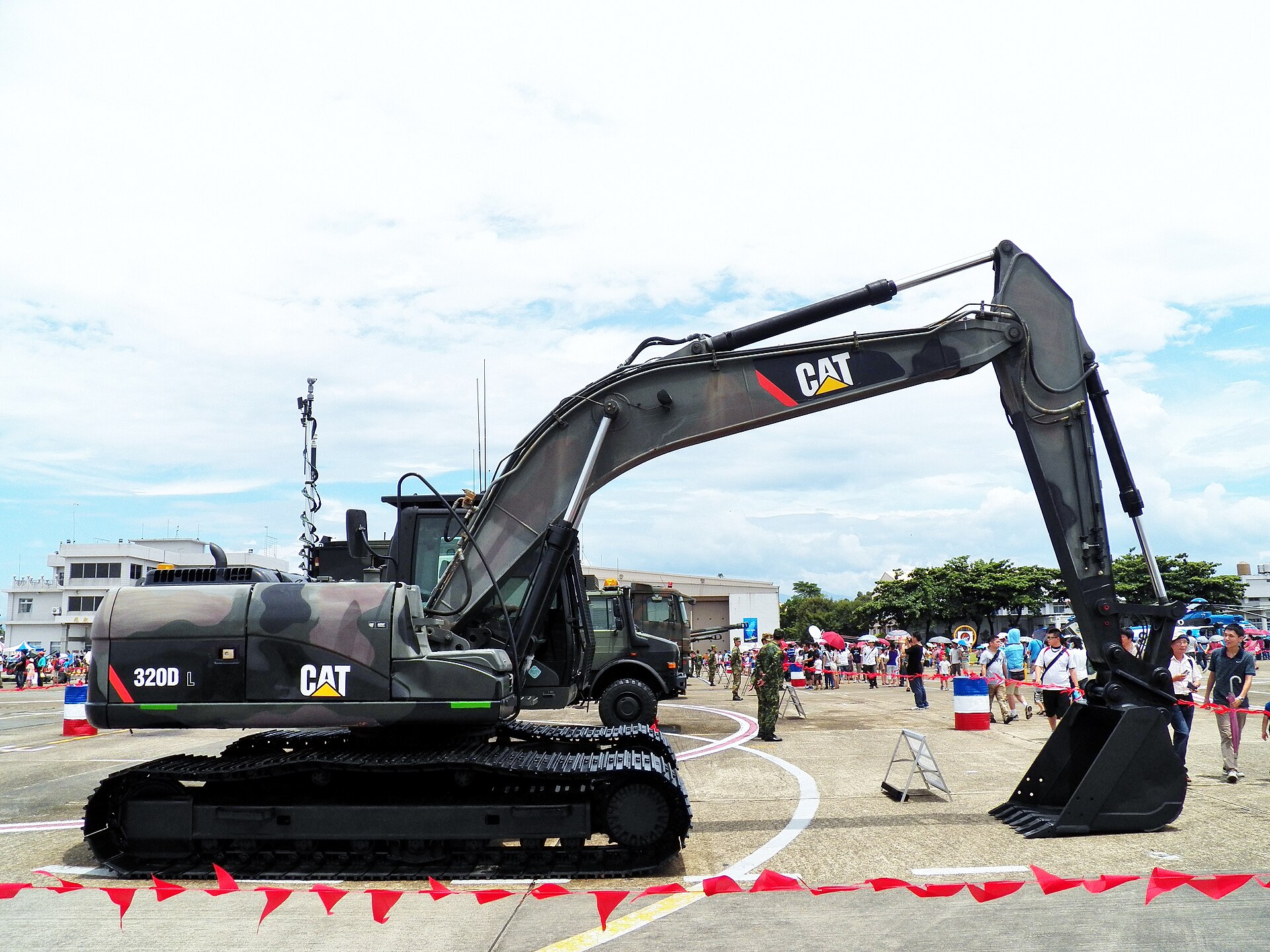

An excavator on a building site sits on two steel tracks. To swing the whole machine round it drives one track forward and one back, and the tracks grind sideways across the ground.
Why it is built that way
Tracks spread the machine’s weight over a huge area, so it does not sink into mud. The price is that it cannot steer like a car — there is nothing to point.
And here is the part that matters today. A skid steer depends entirely on what the ground does back. On wet clay the tracks slide and the machine barely turns. On dry gravel they bite and it spins round fast. The same track movement gives a different angle, and the driver corrects by eye every time.
Big machines that must be precise carry a gyroscope instead of an eye. A phone knows which way you have rotated it, an aeroplane holds a heading in cloud, and a mining excavator digs to a survey line — all from the same kind of chip that is sitting on your chassis.
What would go wrong without it
Count track rotations and your square will be a square on the table you tested on, and a wonky quadrilateral on the mat. Nothing in the program will have changed. The floor will have.
Commanding a turn is not the same as achieving one. Only a sensor knows the difference.
The main concept — turn until you have arrived 6 min
Every turn you have programmed so far has been open-loop: command the motors, and hope. Lesson 30’s Racecar ended by proving that hope is not reliable.
[2 v] reset angle :: sensors start moving [straight: 100] at (25) % speed :: movement wait until <([2 v] angle :: sensors) > (85)> stop moving :: movement
Three things are doing real work in those four blocks.
1 · Reset the angle before every turn
The Gyro counts total rotation since it was last reset — keep turning right and it goes 90, 180, 270, 360, 450. If you do not reset it, the second turn of a square has to wait for 180, the third for 270, and you have to do sums.
Reset it and every turn is measured from zero. The condition is then the same number in every turn, which is easier to read and much easier to tune.
2 · Start moving, then watch
This is Lesson 35’s idea again. start moving [straight: 100] does not wait, so the very next block can watch the Gyro while the tracks are turning. A move for block would blind the program for the whole turn.
3 · Stop early, because it will not stop dead
A robot does not stop the instant you tell it to. Between the Gyro reading 85 and the tracks actually standing still, the Tank Bot keeps rotating — a few degrees at 25% speed, a lot more at 75%. That extra is called overshoot.
| You want | Turn speed | Put in the condition |
|---|---|---|
| 90° | 25% | about 85 |
| 90° | 50% | about 78 — and less repeatable |
| 90° | 75% | don’t. The overshoot is bigger than the accuracy you were trying to buy |
Those numbers are a starting point, not an answer. Your robot’s weight, your tracks and your floor all change them, which is why step 10 is a measurement rather than a list.
The Gyro has one rule
The robot must be completely still when the angle is reset. A Gyro reset while moving starts out wrong and stays wrong — and worse, drifts, so it gets more wrong the longer the program runs. If your turns are consistently off by a growing amount, this is why.
The Gyro Sensor
The Gyro Sensor measures how far the robot has turned, in degrees. Wheels slip and floors vary, so counting wheel rotations is a poor way to turn accurately — the gyro measures the turn itself rather than inferring it.
from above
frontBlocks reference
| Block | What it does |
|---|---|
([2 v] angle :: sensors) | Reports how far the robot has turned since the angle was last reset. |
[2 v] reset angle :: sensors | Sets the current heading as zero. |
Always reset before you turn
The angle is measured from wherever it was last zeroed — not from where this turn started. Here are two robots given the same instruction, one with a reset block and one without.
reset first
when program starts
2 reset angle
start moving right: 100
2 wait until angle > 90
stop moving
no reset
start moving right: 100
2 wait until angle > 90
0°actually turned · reset0°actually turned · no reset
Reset: a real 90° turnNo reset: 0°, and no warning
Both robots have been sitting still. Both gyros already read about 34° — left over from an earlier turn — and the reading is creeping upward even now. That creep is drift.
Both programs are correct about what they asked for. Only the left one asked the question from a known starting point.
Both programs did exactly what they said. Both gyros stopped at 90. But the robot on the right had 34 degrees already on the clock, so it only turned 55 — and nothing about the program looks wrong. Watch the first step too: neither robot is moving and the reading is still climbing. That is drift, and it is why the reset belongs immediately before the turn.
Reset with the robot completely still, as late as you can.
when program starts :: events hat [2 v] reset angle :: sensors start moving [straight: 0] :: movement wait until <([2 v] angle :: sensors) > (90)> stop moving :: movement
That program is the obvious one to write, and it will not give you a 90 degree turn. The next section is why.
Stop before you get there
Asking to stop at 90 does not stop the robot at 90. Between the gyro reaching 90 and the wheels actually standing still there is a delay — the sensor has to be read, the next block has to run, and the motors have to physically brake. The robot is still turning through all of it, so it ends up past where you asked.
The fix is to ask for less than you want. Aim for a 90 degree turn by waiting for 86: the robot coasts the last few degrees on its own and settles at roughly 89 to 91.
ask for exactly 90
2 reset angle
start moving right: 30
2 wait until angle > 90
stop moving
stop 4° early
2 wait until angle > 86
stop moving
slowthis run · 50°/s+4°carried past the stop86tolerance needed here
Asked for 90: ended at 0°Asked for 86: ended at 0°
Both robots are told to turn 90°. The left one waits for the angle to pass 90; the right one gives up 4° early and waits for 86.
The tolerance has to match the speed. At 50°/s the number that lands this turn on 90° is 86 — let it loop, and watch that number change when the speed does.
The size of that gap is not a fixed property of the robot — it is the delay multiplied by how fast you are turning. The delay stays about the same whatever you do, so a turn at double the speed carries you about double the distance past the mark.
| Turn speed | Carried past the stop | Wait for | Ends up at |
|---|---|---|---|
| slow | about 4° | 86 | about 90° |
| fast | about 10° | 80 | about 90° |
So the tolerance and the speed have to be chosen together. Turn faster and you must give up more; if you speed a turn up and forget to lower the number, the robot starts overshooting every corner and the program that worked last week no longer does.
when program starts :: events hat [2 v] reset angle :: sensors start moving [right: 30] :: movement wait until <([2 v] angle :: sensors) > (86)> stop moving :: movement
Find your own number rather than copying this one — it depends on your robot’s weight, its wheels and the speed you turn at. Run the turn, measure where it actually stops, and move the number by however far it missed. Two or three tries is usually enough.
The other half of the answer is to slow down. A slower turn overshoots less, so it needs less guessing and repeats more reliably — which is why a turn worth getting right is rarely worth rushing.
Drift — the thing that catches everyone
A gyro slowly loses its zero even when nothing is moving. Leave a robot sitting still for a minute and the angle may have wandered several degrees all by itself. That is drift, and it is a property of the hardware, not a bug in your program.
Two habits deal with it: reset the angle as late as possible before a turn, and keep the robot dead still while the reset happens. Resetting while the robot is rolling bakes the error in permanently.
Why it matters
Aircraft, ships and phones all use gyros to know their orientation — it is how a phone knows you have turned it sideways. A robot that can turn exactly 90 degrees on any surface is far more reliable than one that guesses with wheel rotations.
Driving with two motors
A driving base has two Large Motors, one per wheel. You could drive them with two separate motor blocks — but they would never start at quite the same instant, and the robot would curve away. EV3 has a separate family of Movement blocks that treat the pair as a single driving base.
port Bport CBlocks reference
| Block | What it does |
|---|---|
set movement motors to [B v] and [C v] :: movement | Tells the Movement blocks which two ports are the driving wheels. Put it at the top of the program, before any movement. |
move [forward v] for (2) [rotations v] :: movement | Drives both wheels together, so the robot travels in a straight line. |
move for (1) [rotations v] at (75) (25) % speed :: movement | Drives the two wheels at different speeds, which makes the robot curve. |
set movement speed to (50) % :: movement | Sets how fast the driving base travels from now on. |
The letters must match the sockets
set movement motors to [B] and [C] is the block that decides which two motors every Movement block after it will drive. It does not look at the robot. It drives the two ports you name, whether or not there is a motor in them — so those two letters have to be the two sockets the cables are actually in.
This is the single commonest reason a driving base does nothing, and it is invisible in the program: every block is spelled correctly and the robot still will not go.
when program starts
set movement motors to B and C
move forward for 3 rotations
the same program on both robots
2wheels driven · matched1wheel driven · mismatched
B and C: both sockets fullB and C: C is empty
Two robots, and the very same program: drive the motors in ports B and C forward.
The yellow outline marks the two ports the block is driving. A robot only goes straight when both of them have a motor in them.
Both robots run the identical program. The left one has its motors in B and C, so both named ports have a motor and the robot drives straight. The right one is plugged into A and B: the block drives B, finds nothing in C, and never mentions the motor in A at all — so one wheel turns, one wheel sits there, and the robot swings round the dead one instead of driving.
If neither named port has a motor in it — cables in A and D, say, with the block still set to B and C — the robot does not move at all. The program runs happily to the end and the Brick reports nothing wrong, because as far as it is concerned it did exactly what it was told.
So before you look for a bug in the program, look at the cables: read the port letters off the Brick, then make the block say those two. B and C are only the usual choice, not a rule — if your build has the driving motors in A and D, set the block to A and D and everything works.
Straight, curved, and on the spot
Everything a driving base can do comes from those two speed numbers. Try each button below and watch the trail the robot leaves.
when program starts
set movement motors to B and C
move for 2 rotations at 50 50 % speed
50left wheel · B50right wheel · C
Equal speeds → a straight line
Both wheels are set to the same speed.
The path is worked out from the two wheel speeds in the block, not drawn by hand — so changing the preset changes the numbers and the shape together.
- Both wheels the same speed — the robot goes straight.
- One wheel faster than the other — it curves towards the slower side. The bigger the difference, the tighter the curve.
- One wheel forward, the other backward — it spins on the spot, which is how a robot turns in a space no wider than itself.
Notice there is no steering block anywhere in that program, and no steering part anywhere on the robot. The turn is made entirely by driving the two wheels different amounts.
when program starts :: events hat set movement motors to [B v] and [C v] :: movement move [forward v] for (2) [rotations v] :: movement move for (1) [rotations v] at (50) (-50) % speed :: movement
How far is one rotation?
“Move forward 2 rotations” says nothing about the floor — it says how many times the wheels go round. How far the robot actually travels depends on how big the wheels are, and once round a standard EV3 driving wheel is about 17.5 cm.
Before doing any sums, get a feel for it. Drag the robot along and watch both scales at once — rotations on top, centimetres underneath, the same line. Land on the half marks: there is a number between 1 and 2, and it is 1.5.
Drag the robot, or use the arrow keys — it moves in half rotations. Rotations above the line, centimetres below.
1.5 rotations26.3 cm
1.5 — a half rotation past 1. Half a turn of the wheels is 8.75 cm, so halves matter.
cm=2rotations
35 ÷ 17.5 = 2. That is a number you can type straight into the block.
- 1 rotation = 17.5 cm. Two rotations is 35, three is 52.5.
- Halves are real. 1.5 rotations is a perfectly good thing to type into the block, and it is 26.25 cm — right between the 1 and the 2 you already tried.
- To go a distance you have chosen, divide by 17.5. The calculator does it, but do a few by hand first — 35 ÷ 17.5 = 2 is worth seeing.
- Measure your own wheels before trusting the number. A base built with different wheels travels a different distance per rotation, and every calculation on this page moves with it.
set movement motors to [B v] and [C v] :: movement set movement speed to (30) % :: movement move [forward v] for (2) [rotations v] :: movement
Turning on the spot
Steering at right 100 or left 100 drives the two wheels in opposite directions, so the base stops travelling and pivots where it stands. The angle it sweeps is a simple doubling of the rotations:
Half a rotation is the one worth remembering: a square corner, 90°.
| Rotations | The robot turns |
|---|---|
| 0.25 | 45° — half a corner |
| 0.5 | 90° — a square corner |
| 1 | 180° — turn round and face back |
| 2 | 360° — all the way round |
The one to memorise is 0.5 rotations = 90°. Everything else follows from doubling or halving it.
set movement speed to (20) % :: movement move [right: 100] for (0.5) [rotations v] :: movement
Turn slowly. The wheels on a driving base are big and the robot carries a lot of weight, so at full speed it keeps going after the motors stop and lands past the angle you asked for. Somewhere between 15% and 30% speed is where turns become repeatable. A turn that overshoots is almost always a turn taken too fast, not a wrong number.
These figures belong to your robot. The distance depends on the wheels and the angle depends on how far apart they are, so a wider base needs a different number for 90°. Test it, measure what actually happened, and adjust — the same discipline as the Gyro Sensor tolerance.
Why it matters
Every wheeled vehicle steers this way — a tank, a digger, an office chair with two driven castors. Cars use a steering rack instead, but a robot that turns by driving its wheels at different speeds needs no steering mechanism at all.
Reset, turn, watch, stop early. The number in the condition is your overshoot, measured.
The Gyro SensorFrom Lesson 43 — angle, angular velocity, reset, and drift.Show meHide
The Gyro Sensor
The Gyro Sensor measures how far the robot has turned, in degrees. Wheels slip and floors vary, so counting wheel rotations is a poor way to turn accurately — the gyro measures the turn itself rather than inferring it.
from abovefrontBlocks reference
| Block | What it does |
|---|---|
([2 v] angle :: sensors) | Reports how far the robot has turned since the angle was last reset. |
[2 v] reset angle :: sensors | Sets the current heading as zero. |
Always reset before you turn
The angle is measured from wherever it was last zeroed — not from where this turn started. Here are two robots given the same instruction, one with a reset block and one without.
reset first
when program starts
2 reset angle
start moving right: 100
2 wait until angle > 90
stop moving
no reset
start moving right: 100
2 wait until angle > 90
0°actually turned · reset0°actually turned · no reset
Reset: a real 90° turnNo reset: 0°, and no warning
Both robots have been sitting still. Both gyros already read about 34° — left over from an earlier turn — and the reading is creeping upward even now. That creep is drift.
Both programs are correct about what they asked for. Only the left one asked the question from a known starting point.
Both programs did exactly what they said. Both gyros stopped at 90. But the robot on the right had 34 degrees already on the clock, so it only turned 55 — and nothing about the program looks wrong. Watch the first step too: neither robot is moving and the reading is still climbing. That is drift, and it is why the reset belongs immediately before the turn.
Reset with the robot completely still, as late as you can.
when program starts :: events hat [2 v] reset angle :: sensors start moving [straight: 0] :: movement wait until <([2 v] angle :: sensors) > (90)> stop moving :: movement
That program is the obvious one to write, and it will not give you a 90 degree turn. The next section is why.
Stop before you get there
Asking to stop at 90 does not stop the robot at 90. Between the gyro reaching 90 and the wheels actually standing still there is a delay — the sensor has to be read, the next block has to run, and the motors have to physically brake. The robot is still turning through all of it, so it ends up past where you asked.
The fix is to ask for less than you want. Aim for a 90 degree turn by waiting for 86: the robot coasts the last few degrees on its own and settles at roughly 89 to 91.
ask for exactly 90
2 reset angle
start moving right: 30
2 wait until angle > 90
stop moving
stop 4° early
2 wait until angle > 86
stop moving
slowthis run · 50°/s+4°carried past the stop86tolerance needed here
Asked for 90: ended at 0°Asked for 86: ended at 0°
Both robots are told to turn 90°. The left one waits for the angle to pass 90; the right one gives up 4° early and waits for 86.
The tolerance has to match the speed. At 50°/s the number that lands this turn on 90° is 86 — let it loop, and watch that number change when the speed does.
The size of that gap is not a fixed property of the robot — it is the delay multiplied by how fast you are turning. The delay stays about the same whatever you do, so a turn at double the speed carries you about double the distance past the mark.
| Turn speed | Carried past the stop | Wait for | Ends up at |
|---|---|---|---|
| slow | about 4° | 86 | about 90° |
| fast | about 10° | 80 | about 90° |
So the tolerance and the speed have to be chosen together. Turn faster and you must give up more; if you speed a turn up and forget to lower the number, the robot starts overshooting every corner and the program that worked last week no longer does.
when program starts :: events hat [2 v] reset angle :: sensors start moving [right: 30] :: movement wait until <([2 v] angle :: sensors) > (86)> stop moving :: movement
Find your own number rather than copying this one — it depends on your robot’s weight, its wheels and the speed you turn at. Run the turn, measure where it actually stops, and move the number by however far it missed. Two or three tries is usually enough.
The other half of the answer is to slow down. A slower turn overshoots less, so it needs less guessing and repeats more reliably — which is why a turn worth getting right is rarely worth rushing.
Drift — the thing that catches everyone
A gyro slowly loses its zero even when nothing is moving. Leave a robot sitting still for a minute and the angle may have wandered several degrees all by itself. That is drift, and it is a property of the hardware, not a bug in your program.
Two habits deal with it: reset the angle as late as possible before a turn, and keep the robot dead still while the reset happens. Resetting while the robot is rolling bakes the error in permanently.
Why it matters
Aircraft, ships and phones all use gyros to know their orientation — it is how a phone knows you have turned it sideways. A robot that can turn exactly 90 degrees on any surface is far more reliable than one that guesses with wheel rotations.
Say this back before moving on: “Ask for 85 if you want 90, and measure why.”
What’s in this build 4 min
Look at your Tank Bot. Where exactly is the Gyro, and which way up is it? On this model that is not a detail.
| Part | What it is doing here |
|---|---|
| EV3 Intelligent Brick | Sits low and central over the tracks. Its weight is what makes them grip. |
| Large Motor ×2 — the tracks | Large because tracks are hard work: they are dragging rubber sideways across the floor for the whole turn. |
| Gyro Sensor | Measures rotation about one axis only — the one sticking straight up out of its flat face. Mount it flat and level or it will measure a fraction of the turn. |
| The rubber tracks (not electronic) | Grip and scrub. Their tension changes how the robot turns, so a loose track is a slow, unrepeatable turn. |
Two checks that save the whole lesson
- Is the Gyro flat? Its face must be parallel with the floor. Mounted on its side it measures the robot tipping, not the robot turning, and will read almost nothing during a turn.
- Are both tracks equally tight? Push the robot forward by hand across a metre. If it curves, one track is tighter — fix that before you write a line, because the Gyro will faithfully report a robot that cannot go straight.
Ports — and the rule 4 min
Sensors go in ports 1, 2, 3, 4. Motors go in ports A, B, C, D. They are not interchangeable, and nothing will tell you politely if you swap them.
| Part | Port | Why this one |
|---|---|---|
| Left track (Large) | B | The pair. Two motors, one job. |
| Right track (Large) | C | The other half. Swapped, every turn goes the wrong way and the Gyro reads negative. |
| Gyro Sensor | 2 | The Gyro’s own home port — the one Lessons 31 and 32 borrowed because their models had no Gyro. This one does. |
Check your own wiring now:
- Tracks in B and C, Gyro in 2.
- Do not unplug the Gyro while the program is running. The EV3 re-initialises it on reconnect and it will read nonsense until the program is restarted.
- Route the Gyro cable so it cannot be caught by a track. A track eats cables faster than a wheel does.
- Stand the robot on a flat, still surface before you press Play.
Connect the Brick 4 min
Two routes, and either is fine. USB is the reliable one and the one to fall back on when a room’s Bluetooth is busy; Bluetooth leaves the robot free to move, which some models need.
How to connect the BrickUSB and Bluetooth, step by step, with a photograph of every screen. Open it if you have not done this before — or if pairing is not working.Show meHide
USB — the reliable one
- Switch the Brick on with the dark grey centre button.
- Cable into the Brick’s PC port — the small square socket beside the numbered ports, not one of the numbered ones.
- Other end into the computer.
Bluetooth — name it first
Do these in order. Naming the Brick after you go looking for it in the list is how groups end up driving each other’s robots.
- Name your Brick. On the Brick: Settings (the spanner) → Brick Name. Type something nobody else will pick, then press the tick. Every Brick is called
EV3until somebody changes it. - Turn Bluetooth on. Settings → Bluetooth. Tick Bluetooth and Visibility. Leave iPhone/iPad/iPod unticked.
- Connect from EV3 Classroom. Click the Brick icon at the top of the programming area, find your Brick by name, and click Connect.
- Say yes on the Brick. It asks “Connect?” with the computer’s name — choose the tick, then accept the passkey, which is already 1234.
EV3.The two failures, every class, every time. The Brick has gone to sleep while you were building — press the centre button to wake it. Or you have paired with the group at the next table, which is why the name matters.
The long version, including Port View and how to read the port tiles, is in the Brick & Bluetooth guide.
Bluetooth, and this time it is not optional. A cable pulling on a skid-steering robot changes the very thing you are measuring. It will add a few degrees to every turn and you will chase the error in your program for twenty minutes.
Confirm the connection 2 min
- Check the Brick icon: connected, or not.
- Two motor tiles on B and C, and a Gyro tile on 2.
- Turn the whole robot 90° by hand and watch tile 2. It should read close to 90. If it barely moves, the Gyro is mounted on the wrong face. If it reads negative, you turned the other way — turn back and check.
- Now put the robot down and leave it alone for thirty seconds. Watch the number. If it creeps, that is drift, and it is why the program resets the angle before every single turn.
Stuck? The long version, with a photograph of every screen, is in the Brick & Bluetooth guide.
Make it move 10 min
A square: drive a side, turn a real 90°, four times. It should finish where it started, facing the way it began.
when program starts :: events hat set movement motors to [B v] and [C v] :: movement clear display :: display write [SEGI EMPAT] at line (1) :: display repeat (4) move [forward v] for (2) [rotations v] at (40) % speed :: movement wait (0.3) seconds [2 v] reset angle :: sensors start moving [straight: 100] at (25) % speed :: movement wait until <([2 v] angle :: sensors) > (85)> stop moving :: movement write ([2 v] angle) at line (3) :: display end play sound [Communication / Goodbye v] until done :: sound
wait (0.3) secondsbefore the reset. This is not padding. It lets the robot come to a genuine standstill, so the Gyro is zeroed while still. Delete it and the turns get worse every lap.- Reset inside the loop, not before it. Every turn starts from zero, so 85 means the same thing all four times.
- Steering 100 is a spin on the spot — one track forward, one back. The robot turns without going anywhere, which is what keeps the corners of the square sharp.
- Line 3 is your instrument. After the robot has stopped, the angle it displays is 85 plus whatever it coasted. Write those four numbers down; step 10 uses them.
What success looks like: the Tank Bot drives a square you would recognise as a square. It finishes within a few centimetres of its start and pointing roughly the original way, and the screen has been showing you numbers a little above 85 all along.
If it spins for ever, it is turning the way that makes the angle go negative — the condition asks for greater than 85 and the reading is heading to −85. Swap the steering sign to −100, or use < (−85).
Change it and test 8 min
One change at a time. Mark the start with tape and put a line on the floor showing the way the robot faces, so you can see both errors.
- Measure your own overshoot. Set the condition to
> (90)and run one turn. Read line 3 — say it says 96. Your overshoot is 6, so your target is 84. Put that in and run the square. - Raise the turn speed to 50% and repeat the measurement. The overshoot roughly doubles. This is the trade: a faster turn is a less certain one.
- Now the important comparison. Replace the whole Gyro turn with move [straight: 100] for (0.8) [rotations v] and tune it until the square closes on the table. Then carry the robot to a different surface and run it again.
- Put the Gyro turn back and run it on both surfaces. The tuned rotation count broke; the Gyro turn did not.
- Change
repeat (4)torepeat (6)and the target to 55 (60° minus overshoot). A hexagon. Then a pentagon: 5 turns of 72°. - Let the Brick buttons choose. Up for a square, right for a pentagon, down for a hexagon — four stacks, or one stack with a Switch on (button).
- Delete the
reset angleand run the square. The first turn is right and the rest never happen, because the angle is already past 85.
Steps 3 and 4 are the argument for the Gyro, and they are worth doing properly. The rotation-counted turn is not less accurate — on the surface you tuned it for, it is excellent. It is less portable. It encodes an assumption about the floor, and it does not tell you when that assumption stops being true.
A counted turn describes the motors. A Gyro turn describes the robot.
