EV3 Robotics›Level 3 · Advanced›Lesson 10
Level 3 · Lesson 10 · EV3-L03-1060 minutes · Ages 9–16 · Model: EV3 Chinook helicopter
The Chinook: the twin-rotor transport helicopter, with a Medium Motor driving the rotors and an Ultrasonic Sensor underneath, measuring its height above whatever is below it.
You are going to make it hold a hover — keep a set distance from the ground as you move a board up and down beneath it. That is Lesson 5’s closed loop, and if you write it the same way it will twitch continuously.
By the end of the lesson your helicopter will hold its height and then go genuinely still — not because it stopped correcting, but because you told it what close enough means.

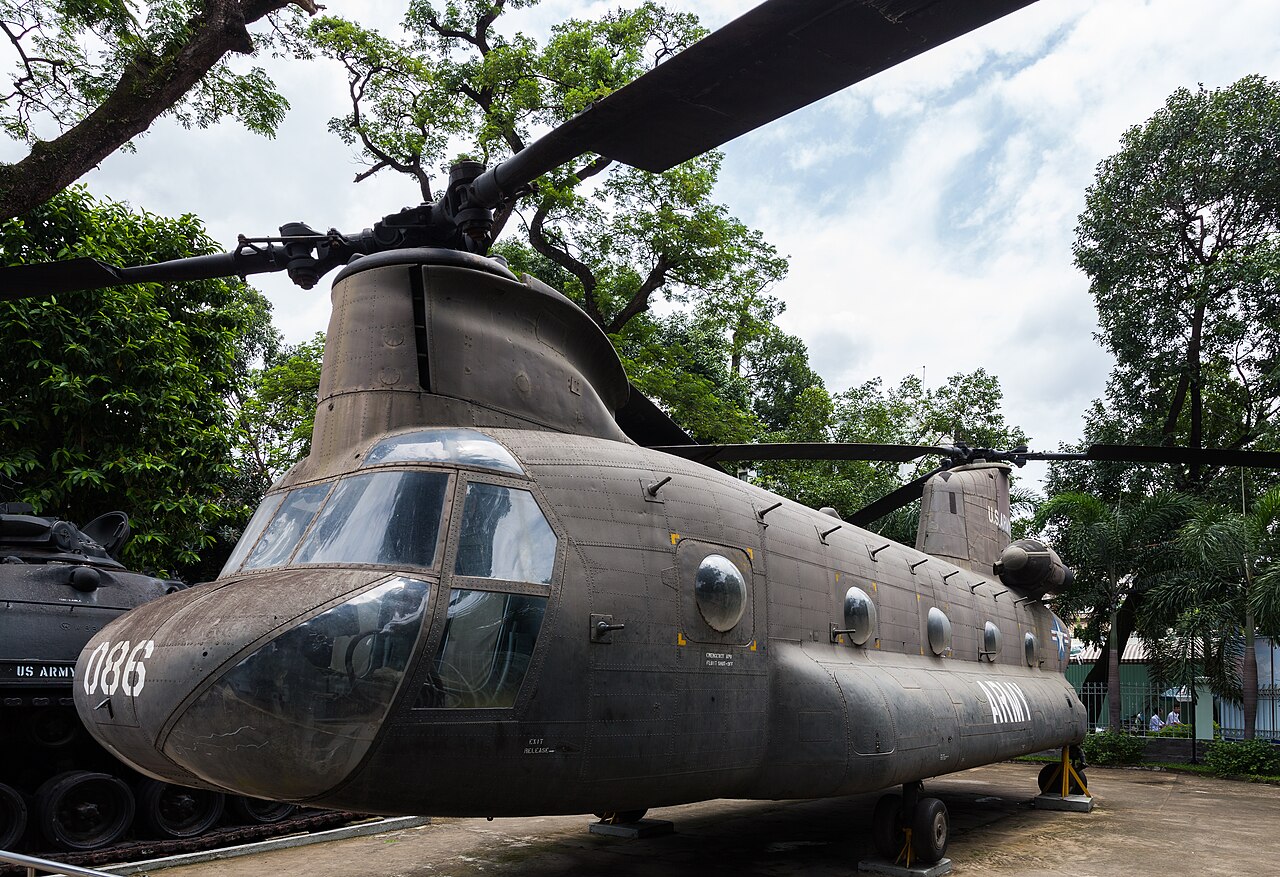

The CH-47 Chinook has two big rotors turning in opposite directions, one at each end. That layout means it needs no tail rotor — the two cancel each other’s twist — and it can lift a great deal for its size. It has been flying since 1962 and is still in service, which is unusual for any aircraft.
Its hardest routine job is the hover: holding position over a spot on a hillside while people or a load come off the ramp. The aircraft is never actually still. It is being pushed by gusts and by its own downwash bouncing off the ground, and the pilot and the flight-control system are correcting constantly.
An autopilot that tried to correct every millimetre of drift would be worse than one that did not. The controls would chatter, the airframe would be worked constantly, and the passengers would be shaken by a machine trying too hard to be perfect.
So every real control system has a deadband: a zone around the target inside which it deliberately does nothing. A house thermostat works the same way — it does not switch the boiler on and off at exactly 20°C, or the relay would clatter every few seconds. It heats to 20.5 and waits until 19.5 before starting again.
Relays wear out. Motors overheat. Fuel is wasted. And the machine is noisy and unpleasant in a way that a slightly less accurate one is not. Chasing the last millimetre costs more than the millimetre is worth.
Perfect is expensive. Every real machine decides how wrong it is willing to be, and then rests.
Lesson 5’s loop corrects whenever the error is anything other than zero — and the error is never exactly zero, because sensors are noisy and motors overshoot. So it corrects for ever. A deadband says: below this much error, do nothing at all.
forever set [error v] to ((target) - ([4 v] distance in cm)) :: variables [A v] start motor at ((error) * (3)) % speed :: motors end
forever
set [error v] to ((target) - ([4 v] distance in cm)) :: variables
if <([abs v] of (error)) > (2)> then
[A v] start motor at ((error) * (3)) % speed :: motors
else
[A v] stop motor :: motors
end
endabs is why there is only one test. The absolute value throws away the sign, so “more than 2 cm out” covers too high and too low at once. Without it you would need two comparisons and an or.
| Deadband | What you get | What you pay |
|---|---|---|
| None | As accurate as the sensor allows. | Never still. Motor always working, always buzzing. |
| Small (1–2 cm) | Still, and close. | Settles a little off target. Usually the right answer. |
| Large (10 cm) | Very still, very calm. | Visibly wrong — it stops well short and calls it done. |
There is no setting that gives you both. Stillness is bought with accuracy, and choosing the exchange rate is the engineer’s job, not the program’s.
A deadband stops the twitching around a target. A related trick stops flickering at a boundary: use a different threshold for switching on than for switching off.
if <(state) = [rest]> then
if <([abs v] of (error)) > (4)> then
set [state v] to [correct] :: variables
end
end
if <(state) = [correct]> then
[A v] start motor at ((error) * (3)) % speed :: motors
if <([abs v] of (error)) < (1)> then
set [state v] to [rest] :: variables
end
endThat gap has a name — hysteresis — and you have already used it. Lesson 7’s chicken stopped at 15 cm and walked on at 25 cm, for exactly this reason.
A sensor that reports a number cannot be used to make a decision on its own — 23 is neither true nor false. An operator turns that number into an answer by comparing it with something.
| Block | What it does |
|---|---|
<(x) > (50)> | True when the left value is bigger than the right. |
<(x) < (50)> | True when it is smaller. |
<<> and <>> | True only when both conditions are true. |
<<> or <>> | True when at least one of them is. |
Forget the symbols for a moment. A comparison is a question about position on a number line: is x to the left of the other number, or to the right? Left is smaller, right is bigger — and that is the whole of it.
Drag the orange x and the black marker, and change the comparison. The green stretch is every position of x that would make the answer true — so you can see where the answer flips before you get there. Turn not on and watch the green jump to the other side.
Drag either marker, or use the arrow keys.
is x to the LEFT of it?
The lab above asks one question at a time: is this x true? A robot never has just one x, though — a sensor reading slides up and down all the time, so what really matters is which stretch of the line makes the condition true. This one draws the whole answer at once.
Drag the circle to move the number you are comparing against, and change the comparison. Everything shaded green is a value of x that would make it true.
Drag the circle, or use the arrow keys. It moves in steps of 0.2.
Every number to the left of 0.2 — but not 0.2 itself, so the circle is hollow.
Watch the circle, because it carries the part everyone gets wrong:
Now turn not on with x > 2 selected and watch two things happen together. The shading jumps to the other side, and the circle fills in — because “not greater than 2” means 2 or less, and 2 has to be part of it. That pairing is the whole reason a hollow circle is worth drawing.
Why a robot cares. Two conditions that look almost identical — light < 30 and not (light > 30) — differ by exactly one value, the reading of precisely 30. A robot sitting right on its threshold behaves differently under the two, and that is the sort of bug that only shows up occasionally and looks like a broken sensor.
These three join answers together rather than numbers. The trap is that English is looser than a program: “stop if it is close and the bumper is pressed” sounds like it covers both situations, when it covers neither on its own.
Flip the two conditions and watch the table. There are only four possible situations in total, and and and or differ on exactly two of them.
| close | bumper | and | or |
|---|---|---|---|
| true | true | true | true |
| true | false | false | true |
| false | true | false | true |
| false | false | false | false |
and is fussy: it wants both. Three of the four rows are false.
Two sensors are running below: an Ultrasonic reporting a number, and a Touch Sensor reporting true or false. Watch the comparison turn the number into an answer, and watch and and or disagree.
and was true in one row out of four. or was true in three. That is the whole difference, and it is why one of them makes a robot look broken.
The comparison is doing one job: it takes a reading that is neither true nor false and, by holding it against a number you chose, produces something a decision can use. The moment the blue fill crosses the black marker is the moment the answer changes.
The number you compare against is a design decision, not a fact. “Close” for a parking sensor might be 15 cm; for a robot arm it might be 3. Pick it by measuring what the sensor actually reads in the situation you care about, then leave a margin.
and narrows: both must hold, so the robot acts less often but more certainly — stop only if something is close and the bumper is pressed. or widens: either will do, so the robot acts more readily — stop if something is close or the bumper is pressed.
In the four situations above, and was true in one of them and or in three. That is the practical difference: swapping one for the other does not adjust a robot slightly, it changes how often it reacts at all.
The Ultrasonic Sensor measures distance. It sends out a burst of sound too high for people to hear, listens for the echo, and works out how far away the surface is from how long the echo took — exactly how a bat finds a moth, and how a submarine uses sonar.
front
side| Block | What it does |
|---|---|
([4 v] distance in [cm v] :: sensors) | Reports how far away the nearest thing in front of the sensor is, as a number in centimetres. |
wait until <([4 v] distance in [cm v] :: sensors) < (15)> | Holds the program until something comes closer than 15 cm. |
This is the important step up from the Touch Sensor. Touch gives you true or false; the Ultrasonic gives you a number, and the deciding is left to you. Pick a threshold below and watch where the robot ends up.
The black line on the bar is the threshold; the blue fill is the reading. The robot stops the instant the fill crosses the line.
Three different robots, and only one number is different between them. That is what having a number rather than a yes-or-no buys you: the behaviour is tuned by editing one slot, not by rebuilding the program. It also means the sensor can never tell you it is “close” — close is a decision you make about a reading.
Car parking sensors, automatic doors at a shopping centre, and the sensor that stops a lift door closing on somebody all work this way. Reacting before contact is what makes a machine feel safe.
The Home/Retail EV3 set (31313) ships an Infrared Sensor and a Beacon in place of the Ultrasonic and Gyro sensors. The Infrared Sensor also measures distance, so the programs in this module work with it — but it reports a rough 0–100 proximity rather than real centimetres, and it is affected by sunlight and by dark surfaces in ways the Ultrasonic is not.
IR Sensor
BeaconUp to now a robot has been able to wait for a sensor. Deciding is different: the robot checks the sensor and does one thing or another depending on the answer — and then carries on either way.
| Block | What it does |
|---|---|
if <> then end | Runs the blocks inside only when the condition is true. Otherwise skips them. |
if <> then else end | Runs one set of blocks when true and a different set when false. |
A decision made once, at the start, is almost never what you want. Here are two robots with the identical if-else, testing the identical sensor against the identical number — one inside a loop and one not.
decision inside a loop
the same decision, once
A decision is only worth as much as the last time it was made. Inside a loop, that is a few milliseconds ago.
Nothing is wrong with the right-hand program’s decision. It asked the question, got a truthful answer, and acted on it correctly. It simply never asked again, and the world moved on. Decisions belong inside a loop, so the robot keeps re-deciding as things change.
when program starts :: events hat
forever
if <([4 v] distance in [cm v] :: sensors) < (15)> then
stop moving :: movement
else
start moving [straight: 0] :: movement
end
endOnce there is more than one question, decisions can be arranged in four ways. They look nearly identical stacked up in the editor, which is exactly why they get muddled — the thing that differs is not what the blocks say, it is which routes through them exist.
One question sorts them almost completely:
| Are the questions… | Use | How many bodies can run |
|---|---|---|
| independent — any combination can be true | separate ifs | none, some, or all |
| one question, two answers | if / else | exactly one |
| the second only matters when the first is true | nested if | one, and only via the outer |
| mutually exclusive cases — exactly one should win | chained if / else | exactly one, the first that matches |
Each if is asked no matter what the others answered, so any number of them can fire on the same pass. That is the right shape when the conditions genuinely have nothing to do with each other.
forever
if <[3 v] is ambient light intensity [< v] (20) %? :: sensors> then
[A v] start motor [clockwise v] :: motors
end
if <[4 v] is distance [< v] (15) [cm v]? :: sensors> then
[D v] start motor [clockwise v] :: motors
end
endExactly one branch runs, every time. Reach for this whenever the robot must do something either way — and in preference to two ifs testing opposite conditions, which is the same idea written twice and can drift apart.
Putting one if inside another means the inner question is only ever asked when the outer one is true. Use it when the second question is meaningless otherwise: there is no point asking which side an obstacle is on when there is no obstacle.
if <[4 v] is distance [< v] (15) [cm v]? :: sensors> then
if <([2 v] angle :: sensors) < (0)> then
start moving [right: 50] :: movement
end
endWhen not to nest. If you only want “both true” and nothing happens at the outer level, an and says it in one block and reads better:
if <<[4 v] is distance [< v] (15) [cm v]? :: sensors> and <([2 v] angle :: sensors) < (0)>> then start moving [right: 50] :: movement end
Nesting earns its place when something happens at the outer level too, or when there is an else at each level and the two mean different things.
This is the shape for a list of cases where exactly one should win: colour bands, distance bands, speed ranges. EV3 Classroom has no else-if block, so you build a chain by putting the next if inside the else of the last one.
And here is why it matters, because this is the single commonest bug in this whole module. Three bands written as three separate ifs are each perfectly correct, and together they are wrong: a reading of 20 is under 30 and under 60 and under 90, so all three run and the last one to run is the one that sticks.
three separate ifs
chained — if / else / if
↑ the rest is inside the else — never asked
Separate ifs are not wrong here so much as unguarded: nothing stops a second one matching. Chaining is what makes “the first one wins” true.
The rule to carry away: if the cases are meant to be exclusive, they must be made exclusive. Chaining does it by construction. Separate ifs only work if you are careful to write non-overlapping bands yourself — light < 30, 30 to 60, 60 and over — which is more to get right and easy to break later.
This is the point at which a machine stops following a script and starts responding. A thermostat, an automatic door, a robot vacuum — all of them are a decision inside a loop.
Decide how wrong is acceptable, then stop. A machine that never rests is not more accurate — it is just busier.
The Ultrasonic Sensor measures distance. It sends out a burst of sound too high for people to hear, listens for the echo, and works out how far away the surface is from how long the echo took — exactly how a bat finds a moth, and how a submarine uses sonar.
frontside| Block | What it does |
|---|---|
([4 v] distance in [cm v] :: sensors) | Reports how far away the nearest thing in front of the sensor is, as a number in centimetres. |
wait until <([4 v] distance in [cm v] :: sensors) < (15)> | Holds the program until something comes closer than 15 cm. |
This is the important step up from the Touch Sensor. Touch gives you true or false; the Ultrasonic gives you a number, and the deciding is left to you. Pick a threshold below and watch where the robot ends up.
The black line on the bar is the threshold; the blue fill is the reading. The robot stops the instant the fill crosses the line.
Three different robots, and only one number is different between them. That is what having a number rather than a yes-or-no buys you: the behaviour is tuned by editing one slot, not by rebuilding the program. It also means the sensor can never tell you it is “close” — close is a decision you make about a reading.
Car parking sensors, automatic doors at a shopping centre, and the sensor that stops a lift door closing on somebody all work this way. Reacting before contact is what makes a machine feel safe.
The Home/Retail EV3 set (31313) ships an Infrared Sensor and a Beacon in place of the Ultrasonic and Gyro sensors. The Infrared Sensor also measures distance, so the programs in this module work with it — but it reports a rough 0–100 proximity rather than real centimetres, and it is affected by sunlight and by dark surfaces in ways the Ultrasonic is not.
IR SensorBeaconSay this back before moving on: “Close enough is a number, and I choose it.”
Two electronic parts, and one of them is the reason this lesson is hard. Find the sensor and look at what it is pointing at.
| Part | What it is doing here |
|---|---|
| EV3 Intelligent Brick | The fuselage. Its screen is an instrument today — you will watch the error hover near zero and see whether the motor is running. |
| Medium Motor — the rotors and the height arm | Drives the rotor gearing and, through it, the arm that raises and lowers the model. Medium because the response must be quick — a loop correcting through a slow motor oscillates however well it is tuned. |
| Ultrasonic Sensor — underneath | Measures height above the surface below. This is the noisy part: an ultrasonic reading jitters by a centimetre or so even against a still surface, and that jitter is exactly what a deadband absorbs. |
| The rotor gearing (not electronic) | Turn it by hand. Slack in the gear train shows up as the model overshooting on every correction — the motor stops but the arm keeps travelling. |
Ultrasonic sensors dislike soft and angled surfaces. Cloth absorbs the pulse; a sloped board bounces it away. Use a flat, hard board as your “ground” and hold it level, or you will spend the lesson tuning against a sensor that is guessing.
Sensors go in ports 1, 2, 3, 4. Motors go in ports A, B, C, D. They are not interchangeable, and nothing will tell you politely if you swap them.
| Part | Port | Why this one |
|---|---|---|
| Rotors / height (Medium) | A | The only motor, and the whole output of the loop. |
| Height sensor (Ultrasonic) | 4 | Ultrasonic stays on 4 across the course. |
Check your own build now:
Two routes, and either is fine. USB is the reliable one and the one to fall back on when a room’s Bluetooth is busy; Bluetooth leaves the robot free to move, which some models need.
Do these in order. Naming the Brick after you go looking for it in the list is how groups end up driving each other’s robots.
EV3 until somebody changes it.EV3.The two failures, every class, every time. The Brick has gone to sleep while you were building — press the centre button to wake it. Or you have paired with the group at the next table, which is why the name matters.
The long version, including Port View and how to read the port tiles, is in the Brick & Bluetooth guide.
USB is the practical choice. You will change one number and download, many times over — this lesson is mostly tuning. Just keep the lead clear of the space under the sensor, because a cable in the beam is a surface.
Stuck? The long version, with a photograph of every screen, is in the Brick & Bluetooth guide.
Write the twitchy one first. You need to see and hear the problem before the fix means anything.
when program starts :: events hat set [target v] to (20) :: variables clear display :: display forever set [error v] to ((target) - ([4 v] distance in cm)) :: variables [A v] start motor at ((error) * (3)) % speed :: motors write (error) at line (3) :: display end
when program starts :: events hat
set [target v] to (20) :: variables
set [band v] to (2) :: variables
clear display :: display
forever
set [error v] to ((target) - ([4 v] distance in cm)) :: variables
if <([abs v] of (error)) > (band)> then
[A v] start motor at ((error) * (3)) % speed :: motors
set status light to [orange v] :: display
write [CORRECTING] at line (1) :: display
else
[A v] stop motor :: motors
set status light to [green v] :: display
write [HOLDING] at line (1) :: display
end
write (error) at line (3) :: display
endWhat success looks like: the model chases the board while it moves, then the light goes green, the motor goes silent, and it stays there.
If it never goes green, your band is smaller than the sensor’s noise — raise it above the wander you measured in step 8. If it goes green a long way from the target, the band is too wide, or the gain is too weak to close the last of the gap before it enters the band.
One change at a time. Predict, then run, then look.
band to 0. You are back to step 1. Listen — this is the sound of a machine with no tolerance.band to 10. Very calm, and visibly wrong: it settles well short and declares itself happy. Measure how far off it stops.The deadband must be bigger than the noise, or the machine can never believe it has arrived.
Your helicopter holds a height and rests. It does one thing, though — everything in the program is about that single loop.
The next model drives somewhere and raises a bridge, and the two jobs need to agree with each other while both are running. Two parallel stacks, one shared variable, and a new class of bug: both of them writing to it.
Two stacks sharing a variable is the last structural idea in this half of Level 3 — and the one where reading the value at the wrong moment gives an answer that was true a fraction of a second ago and is not any more.
Lesson 5 made it correct. Today made it settle. Next it has to share.
Work through the challenges in order — each is harder than the last. The mission comes after all three, and it is meant to make you plan before you build.
Find your machine's smallest honest deadband. Measure how much the Ultrasonic reading wanders when nothing moves. Then find the smallest band that still lets the status light go green and stay green. Write both numbers on the board. The band should be a little bigger than the wander, and now you know why.
Report how good the hover is. While it holds, keep the largest error seen in the last few seconds and show it on screen. That number is the honest quality of your hover. Change the gain and watch it change — you now have a measurement instead of an opinion.
Two thresholds, no flicker. Rebuild the loop with hysteresis: start correcting when the error exceeds 4 cm, stop when it falls below 1 cm. Hold the board exactly at the boundary and compare against the single-threshold version. Then explain where you have seen this before — the chicken did it in Lesson 7 without naming it.
Hold a hover through a disturbance and prove how well it did. The helicopter must hold a set height while a partner moves the board slowly up and down, then holds it still at a new height. It must settle — genuinely silent, light green — within three seconds of the board stopping, and settle within 3 cm of the target. Both of those are measurable, and the machine must measure them itself: show the settling time and the final error on screen at the end of each disturbance. Two rules: 1. Deadband, gain and target are all named variables at the top. No number buried in a test. 2. You must be able to state the trade-off you chose — how much accuracy you gave up to get stillness — as a number, not a feeling. Then try to beat another group. The interesting part is not who wins, but whether the winner settled faster or simply declared victory sooner with a wider band. Check their deadband before you concede.
Build the model before you read any further. Everything after this is about making it do something, and none of it will make much sense with nothing on the table in front of you.
Use the viewer's own controls to zoom and turn pages. Fullscreen makes it big enough to build from.
The same build on Google Drive — sometimes a video, sometimes a scan:
Use the viewer's own controls to zoom and turn pages. Fullscreen makes it big enough to build from.
Check the finished build against the picture before you switch anything on. A motor mounted the wrong way round is far easier to spot now than it is to debug later, when it looks like a program fault.
