The Ball Conveyor carries coloured balls up a belt. A Colour Sensor sees each one, and a gate sends it somewhere. It is really a draw machine.
Until now, unpredictable has nearly always meant broken. Every bug you have chased was a machine doing something different each time it ran.
By the end of the lesson, exactly one part of your machine will be unpredictable, on purpose. You will also be able to say exactly which parts must never be.
In the real world 5 min
Where you have seen it

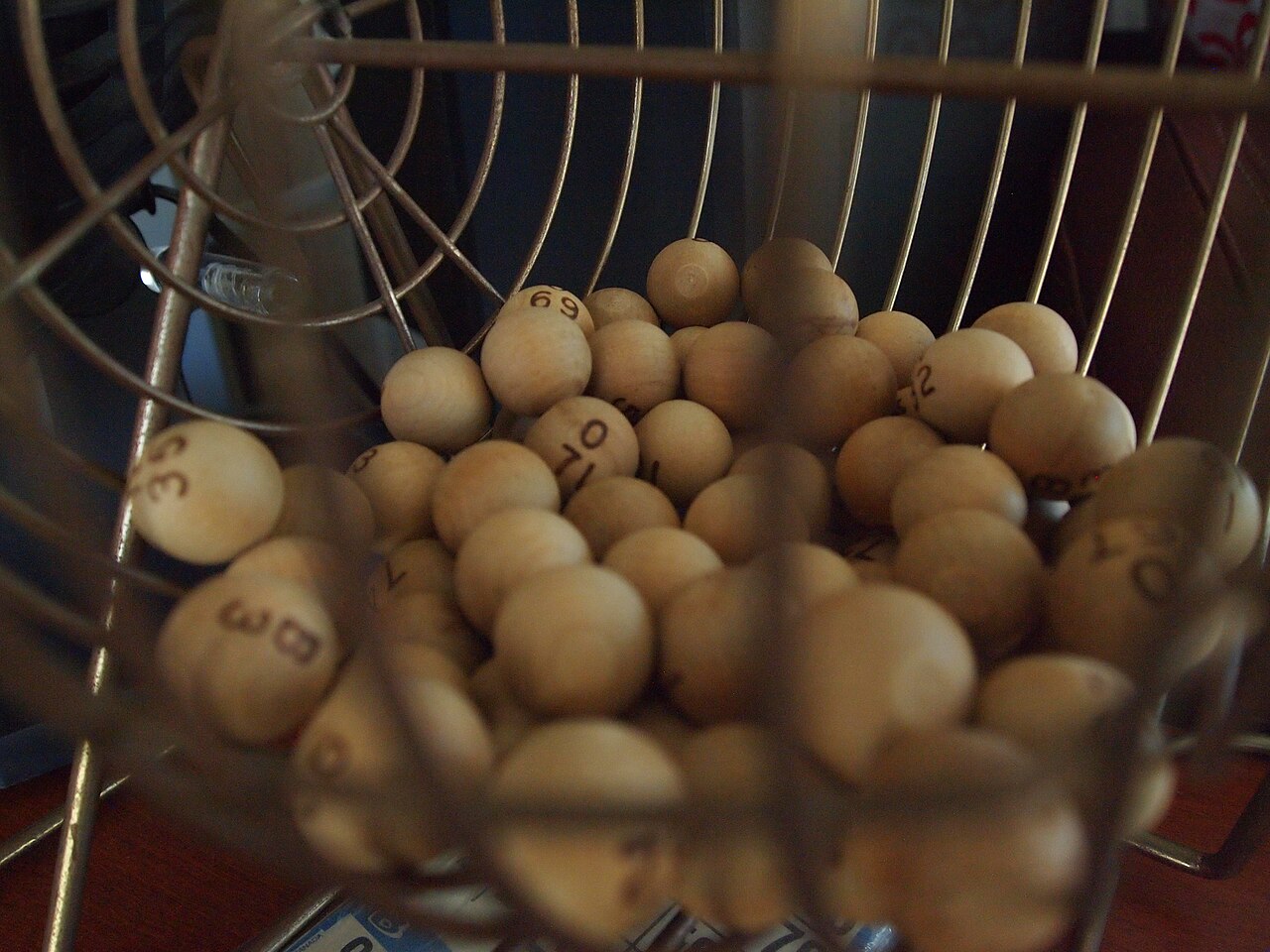

A bingo or lottery machine is built so that nobody can predict the next ball, not even its makers. The balls all weigh exactly the same. The drum is see-through, and the draw is filmed. All that effort is there to make one thing truly unpredictable.
But look at what is not random. The number of balls is fixed. Each number appears exactly once. The machine counts what it drew. A drawn ball is taken out, so it cannot come again. Only which one comes next is unknown.
Why it is built that way
Because randomness is useful in exactly one place and a disaster everywhere else. A game needs it, or it is not a game. A shuffle needs it, or the playlist is the same every morning.
A safety interlock, a counter, a calibration and a scale must never be random. A machine that is unpredictable in one of those is not exciting. It is broken.
What would go wrong without it
A draw machine that gave the same order every time would be pointless. One that could repeat a number, or lose count of how many it had drawn, would be even worse. The game would not work and nobody would trust it.
Be random where it is the point, and rigidly predictable everywhere else.
The main concept — chance, used carefully 6 min
pick random is one block and the easiest thing in this lesson. The hard parts are knowing how random really behaves, and knowing where it must not go.
Random is not fair
Ask for a random number between 1 and 3 twelve times. You will not get four of each. You will often get five, five and two. Sometimes you get the same value three times running.
A run of the same result is not a broken machine, even if people insist it is. Randomness has no memory. Red coming up three times changes nothing about the fourth draw. Things only even out over hundreds of draws, not over twelve.
Random without repeats is a different algorithm
If you want each option exactly once, like a proper draw, picking randomly and hoping will not work. You draw from a shrinking list:
// fill the bag
delete all of [bag v] :: list
add (1) to [bag v] :: list
add (2) to [bag v] :: list
add (3) to [bag v] :: list
add (4) to [bag v] :: list
// draw one, and remove it so it cannot come again
set [pick v] to (pick random (1) to (length of [bag v])) :: variables
set [drawn v] to (item (pick) of [bag v]) :: list
delete (pick) of [bag v] :: list
Exactly the lottery machine: pick a position, take that ball, remove it. The queue’s delete from Lesson 25, doing a completely different job.
You want
Use
Behaves like
Any option, repeats allowed
pick random 1 to 4
A die. Can roll three sixes.
Each option exactly once
Draw from a shrinking list.
A lottery. Cannot repeat, and runs out.
Mostly one, sometimes another
Random 1–100, act on ranges.
Weighted chance — 1 to 80 does this, 81 to 100 that.
Where randomness must never go
Part of a machine
Random?
Why
Which ball to send next
Yes
It is the entire point of the machine.
How many have been drawn
Never
A count that varies is not a count.
Where the gate positions are
Never
Calibrated, as in Lesson 12.
Whether to stop when something jams
Never
Safety. A guard that sometimes acts is not a guard.
A well-built machine usually has exactly one random decision in it. If you find a second one, ask yourself: is it doing anything except making the machine hard to test?
Randomness makes testing harder — plan for it
Every bug you have fixed was found by making the machine repeat itself. A random machine cannot be repeated. So build a switch that fixes the choice, such as Brick Left forcing red. Use it whenever you are debugging anything else.
ComponentData4 min
Random numbers
Sometimes a robot should not be predictable. A game that always asks the same question, or a creature that always turns the same way, stops being interesting after one run. A random number fixes that.
Blocks reference
Block
What it does
(pick random (1) to (10))
Reports a number between the two values, including both ends. A fresh number every time it runs.
(pick random (1.0) to (10.0))
The same range, but written with decimal points — so it reports decimals instead of whole numbers.
Whole numbers, or decimals?
This catches everybody once, because the two blocks look almost identical and behave completely differently. The block decides from what you typed, not from the size of the range:
Both ends written as whole numbers — (pick random (1) to (10)) — and you get whole numbers only. 1, 2, 3 … 10. Never 4.5.
Either end written with a decimal point — (pick random (1.0) to (10)) — and you get decimals: 4.5281749263, 9.9903, anything in between. A whole number is possible but vanishingly unlikely.
And both ends are included. That matters more than it sounds: (pick random (1) to (2)) has exactly two possible answers, not one, which is what makes it a coin toss. A range of whole numbers from a to b has b − a + 1 answers in it.
Type your own range below and press it. Then press it five hundred times.
pick randomto
(pick random (1) to (10))
→
—this pick10possible answers0picks so far
both ends written as whole numbers → whole numbers only1 and 10 can both come up
Only 10 answers exist here, and 1 and 10 are two of them — both ends are included, so the count is 10 − 1 + 1. Nothing lands between the marks.
Press pick a few more times. A handful of picks tells you nothing about whether it is fair.
Change 10 to 10.0 and nothing about the range changes — but the row of separate marks becomes an unbroken band, because the answers stop being a short list of possibilities and become anywhere in between. That is the whole rule, and it is the difference between one keystroke.
Keep the range sensible. A random turn between 1 and 360 degrees mostly looks like chaos; one between 30 and 90 looks like a creature deciding.
Where it goes
Dropped into a motor block it varies the movement; into a wait it varies the timing; into a display block it varies what is shown. Anywhere a number can go, a random number can go.
[A v] run [clockwise v] for (pick random (30) to (90)) [degrees v] :: motors
wait (pick random (1) to (4)) seconds :: control
write (pick random (1) to (6)) at line (1) :: display
Turning a random number into a random decision
The step that makes this block genuinely useful is feeding it into an if … then … else. On its own a random number varies how much something happens. Inside a decision it varies what happens at all.
The smallest version is the coin toss: 1 or 2, two branches, and a fifty-fifty chance of each. Here it is deciding how a driving base gets round an obstacle — one way it drives for three seconds and turns right, the other it drives for two and turns left.
when program starts :: events hat
set [coin v] to (pick random (1) to (2)) :: variables
if <(coin) = (1)> then
move [forward v] for (3) [seconds v] :: movement
move [right: 100 v] for (0.5) [rotations v] :: movement
else
move [forward v] for (2) [seconds v] :: movement
move [left: 100 v] for (0.5) [rotations v] :: movement
end
The same shape gives a motor a fifty-fifty chance of turning one way or the other — 90° or −90°. On the EV3 the sign lives in the direction dropdown rather than in the number, so −90° is written as counterclockwise 90:
when program starts :: events hat
set [coin v] to (pick random (1) to (2)) :: variables
if <(coin) = (1)> then
[A v] run [clockwise v] for (90) [degrees v] :: motors
else
[A v] run [counterclockwise v] for (90) [degrees v] :: motors
end
when program starts :: events hat
set [coin v] to (pick random (1) to (2)) :: variables
if <(coin) = (1)> then
move [forward v] for (3) [seconds v] :: movement
move [right: 100 v] for (0.5) [rotations v] :: movement
else
move [forward v] for (2) [seconds v] :: movement
move [left: 100 v] for (0.5) [rotations v] :: movement
end
—this run0runs so far0 / 0ones / twos
the if branch ranthe other one did not run at all
The program asks for a number between 1 and 2. Both ends count, so there are exactly two answers — a coin toss.One of them comes back, and it is stored before anything else happens. Every block after this depends on which.Only one branch runs. The other does not happen at all — not quickly, not quietly. It simply does not run.Run it again. Watch the tally rather than the robot: it is lumpy, and it is meant to be.Finished. Same program, and it will not necessarily do the same thing next time.
about to pick
Let it loop eight times. Both branches come up four times — and they do not take turns doing it, which is the part that looks like a bug and is not.
Two things are worth watching there. Only one branch runs — the other does not happen at all, so the robot ends up somewhere the other branch would never have put it. And the tally along the bottom is uneven: two 2s in a row, then two 1s. Over the eight runs it comes out four and four, but it does not get there by taking turns, and a program that looks broken for three runs in a row is usually just being random at you.
Storing the draw in a variable is not decoration here — it is required. The next section is why.
A new number every time it runs
This is the part that bites. The block does not hold a number — it produces one, freshly, each time it is reached. Use it twice and you have asked two questions and got two answers. Both creatures below turn a head one way and then back again.
store it, then reuse it
set [angle v] to (pick random (30) to (90)) :: variables
[A v] run [clockwise v] for (angle) [degrees v] :: motors
[A v] run [counterclockwise v] for (angle) [degrees v] :: motors
ask twice
[A v] run [clockwise v] for (pick random (30) to (90)) [degrees v] :: motors
[A v] run [counterclockwise v] for (pick random (30) to (90)) [degrees v] :: motors
A creature's head turns one way and then back again, by a random number of degrees between 30 and 90.Out. Both heads have turned by the number their random block gave them.Back. The left one turns by the angle it stored, so it lands exactly where it began. The right one asks the random block again — and gets a different number.Run it again. A new angle every time, which is the point — but only one of them comes home.Finished — and it will pick fresh numbers in a moment.
this run: 72° out
Let it loop. The angle changes every run on both creatures, as it should. Only the right-hand one also ends up facing somewhere new.
Both are unpredictable, which is what was wanted. But the one on the right asked the random block a second time for the return journey, so it turns back by a different amount and never comes home — by a different margin every run, which is exactly why the bug survives being tested a few times.
The fix is the one on the left. Ask once, store the answer, then use the store:
set [angle v] to (pick random (30) to (90)) :: variables
[A v] run [clockwise v] for (angle) [degrees v] :: motors
[A v] run [counterclockwise v] for (angle) [degrees v] :: motors
The same rule is why the coin toss above says set [coin v] to (pick random (1) to (2)) :: variables on its own line. Putting the random block straight into the if would work for one test and then fail strangely the moment anything below the if needed to know which way it went — because asking again is a fresh toss.
Advanced — picking a random thing, not a random number
A random number is rarely what you actually want. What you want is a random something: a move, a colour, a name. Put the two together and the number stops being the answer and becomes the position of the answer.
(item (pick random (1) to (length of [Names v])) of [Names v])
Read it from the inside out. (length of [Names v]) asks the list how many things are in it. The random block picks a position between 1 and that. (item () of [Names v]) fetches whatever is standing in that position.
Asking the list for its own length is the part to copy. Type the number in instead and the program works perfectly until the day somebody adds one more item — and then that item is never picked, silently, for ever. Try it below.
the range goes up to
when program starts :: events hat
clear display :: display
set [pick v] to (pick random (1) to (length of [Names v])) :: variables
write (item (pick) of [Names v]) at line (3) :: display
—the number picked—item at that position5length of Names0picks so far
The range is asked from the list itself, so adding a name is enough — press «add a name» and the new one is in the draw immediately.
Switch the range to the typed 5, add a name, and press pick 40 more. The counts under the new faces stay on zero. Nothing is misspelled, nothing reports an error, and one name simply never comes up — which is the same class of bug as the creature that never comes home, and just as hard to notice by running the program once.
It makes testing harder
This is the honest cost. A program with randomness in it behaves differently every run, so a bug that appears once may not appear again — and you cannot tell whether a fix worked from a single test. When hunting a bug in a random program, temporarily replace the random block with a fixed number, fix the bug, then put it back.
ComponentData6 min
Lists
A variable holds one number. A list holds many, in order, under one name — so a robot can remember every reading it took rather than only the most recent.
A corridor of lockers
If a variable is a piece of paper with one number on it, a list is a row of lockers. Each locker has a number on the door, and each one holds something of its own. They all share a name — snacks, colours — and you tell them apart by the number, not the name.
The doors matter. You cannot see what is in the whole row at a glance: to find out what is in locker 3, you have to open locker 3. And if you want to change what is in there, you open it, take out what is inside, and put something else in. Try it — click a door.
length of snacks = 3
add candy to snacks
Three lockers are in use. You cannot see inside any of them until you open one — click a door.
Every list block is one of those physical actions, and the block for whatever you just did appears underneath the lockers:
Block
The locker version
add [banana] to [snacks v]
Put a banana in the next free locker. Always the end of the row.
(item (3) of [snacks v])
Open locker 3 and tell me what is inside. One locker, one look.
replace item (3) of [snacks v] with [candy]
Open 3, take out what is there, put candy in. Nothing else moves.
delete (3) of [snacks v]
Empty locker 3 and close up the gap — everything after it shuffles down one. What was in 4 is now in 3.
(length of [snacks v])
How many lockers are in use.
delete all of [snacks v]
Empty the whole row. This belongs at the top of a program.
Deleting is the one that catches people. A locker does not stay empty — the row closes up. Delete item 2 of a five-item list and you have a four-item list, with everything after position 2 now one number lower than it was. Any position you wrote down before the delete is wrong afterwards.
What a robot puts in them
Lists are not only for numbers. Anything a block can report can go in one:
Colours from the Colour Sensor. Drive along a line of coloured cards adding each reading, and at the end the robot has the whole sequence — not just the last card it went over.
Positions in degrees. A list of angles is a list of places an arm should go: 0, 90, 180, 270. Walking the list drives the arm through the positions in order, and changing where it stops means editing a number rather than rewriting the program.
Words.apple, banana, candy — a vending machine holds its stock in one list and the matching prices or positions in another, so item 2 of one lines up with item 2 of the other.
Blocks reference
Block
What it does
add [thing] to [List v]
Puts a new value on the end.
(item (1) of [List v])
Reads the value at a position. Positions start at 1.
(length of [List v])
Reports how many values are stored.
delete all of [List v]
Empties it. This belongs at the top of the program, for the same reason a variable is set to zero there.
Collecting readings
The natural shape is a loop that takes a reading and adds it. Watch the same four readings go into a variable and into a list.
into a variable
repeat 4
set reading to 4 distance in cm
into a list
delete all of Readings
repeat 4
add 4 distance in cm to Readings
write item (3) of Readings at line 1
0values in the variable0values in the list
The robot will stop four times and read the distance. One program keeps the reading in a variable; the other adds it to a list.Reading 1: 38 cm. Both programs hold 38.Reading 2: 12 cm. The variable has just thrown 38 away. The list has both.Reading 3: 47 cm — the biggest of the run.Reading 4: 25 cm. The variable holds one number; the list holds four, in the order they were taken.Now go back and ask for any of them — item 3 of the list is still 47, the largest of the run. The variable cannot answer: 47 stopped existing two stops ago.Finished. The variable was never wrong — it was only ever holding one thing.
0 of 4 readings taken
Watch the variable box, not the list. Every reading it shows is correct; it is the ones it has already forgotten that matter.
Notice that the variable is never wrong. Every number it shows is a real reading, correctly taken, moments ago. It simply has room for one, so each new reading pushes the last one out — and by the fourth stop three readings have quietly ceased to exist.
Afterwards the list can be walked to find the largest, the smallest, or the average — none of which is possible if you only ever kept the latest value.
Positions count from 1, not 0. A loop that starts its counter at 0 reads a position that does not exist and misses the first entry.
Reading the whole list out
Storing readings is only half of it. To use a list you walk it, and that needs one more idea: a variable that holds a position rather than a value. Call it i. Set it to 1, read item i, then change i by 1 — and the next pass round the loop looks at the next locker.
Two things make this work without anybody counting. The loop repeats length of colours, so it runs once per item however many there are; and i doubles as the screen line, so each item lands on its own row.
when program starts :: events hat
delete all of [colours v]
add [red] to [colours v]
add [blue] to [colours v]
add [green] to [colours v]
add [yellow] to [colours v]
clear display :: display
set [i v] to (1)
repeat (length of [colours v])
write (item (i) of [colours v]) at line (i) :: display
change [i v] by (1)
end
1i · the positionreditem i of colours4length of colours
The list holds four colours. i is set to 1 — it is not a colour, it is a position.Pass 1. item 1 of colours is red, so red goes on line 1. Then i changes to 2.Pass 2. item 2 is blue, onto line 2, and i becomes 3.Pass 3. item 3 is green, onto line 3, and i becomes 4.Pass 4 writes yellow. The loop was told to repeat length of colours — four — so it stops there without anybody counting.Four items, four passes, four lines. Add a fifth colour to the list and the same program writes five, unchanged.Finished. The program never mentions the number four — it asks the list how long it is.
i = 1
Watch i rather than the blocks. It is the only thing that changes between one pass and the next, and it is what makes each pass look at a different locker.
Nowhere does that program mention the number four. Add a fifth colour and it writes five lines, unchanged — which is the whole reason to ask a list its length rather than typing a number you will have to remember to update.
Going further: sorting, and finding the biggest
Once a robot can walk a list it can do real work on one. Both of these are the same trick — go along comparing two items at a time — and they differ only in what they do about it. Sorting swaps the pair; finding the biggest just remembers the winner.
when program starts :: events hat
set [i v] to (1)
repeat ((length of [nums v]) - (1))
set [j v] to (1)
repeat ((length of [nums v]) - (i))
if <(item (j) of [nums v]) > (item ((j) + (1)) of [nums v])> then
set [temp v] to (item (j) of [nums v])
replace item (j) of [nums v] with (item ((j) + (1)) of [nums v])
replace item ((j) + (1)) of [nums v] with (temp)
end
change [j v] by (1)
end
change [i v] by (1)
end
5 was bigger than 2, so they swap. The bigger number moves one place to the right.5 is already smaller than 9 — nothing to do. Move along one.9 was bigger than 1, so they swap. The bigger number moves one place to the right.9 was bigger than 7, so they swap. The bigger number moves one place to the right.2 is already smaller than 5 — nothing to do. Move along one.5 was bigger than 1, so they swap. The bigger number moves one place to the right.5 is already smaller than 7 — nothing to do. Move along one.2 was bigger than 1, so they swap. The bigger number moves one place to the right.2 is already smaller than 5 — nothing to do. Move along one.1 is already smaller than 2 — nothing to do. Move along one.Sorted. Every pass floated the biggest remaining number to the end, which is why it is called a bubble sort.Finished. Same blocks, any list — it does not care how long it is or what order it started in.
swap
Only ever two numbers are being compared at a time. A sort looks complicated because it repeats, not because any one step is hard.
A bubble sort looks hard because it is a loop inside a loop, but no single step is: compare two neighbours, swap them if they are the wrong way round, move along one. Each full pass floats the biggest remaining number to the end — which is where the name comes from — so after as many passes as there are items, the list is in order.
Finding the biggest needs no swapping at all. Assume the first item is the winner, walk the rest, and whenever you meet something bigger, remember that instead. One pass, one variable. Swap the > for a < and the same program finds the smallest — which is how a line-following robot works out its black and its white before choosing a threshold between them.
Why it matters
This is data collection — a robot driving a course while recording distances, then reporting what it found. It is the difference between a machine that reacts and one that measures.
ComponentSensing6 min
The Colour Sensor
The Colour Sensor looks down at a surface and can answer three quite different questions: what colour is this?, how bright is this? and how light is the room? Choosing the wrong one is the usual reason a line-following robot refuses to work.
front
side
The sensor has its own lamp beside its detector. That is why it must sit close to the surface and at a steady height — lifting it changes the reading even though the surface has not changed.
Blocks reference
Block
What it does
([3 v] color :: sensors)
Reports which colour it sees, from a short list — red, blue, green, black, white and a few more.
([3 v] reflected light intensity :: sensors)
Reports how bright the surface is, as a number from 0 (black) to 100 (white).
<[3 v] is color [red v]? :: sensors>
Reports true or false for one particular colour.
([3 v] ambient light intensity :: sensors)
Reports how much light is falling on the sensor, 0 to 100, with its own lamp switched off.
Which colour, exactly?
The sensor does not describe a colour — it picks one from a list of eight, and that list is the whole of what it can ever say:
Reports
Means
0
no colour — too far away, or too dark to call
1 · 2 · 3
black, blue, green
4 · 5 · 6
yellow, red, white
7
brown
Anything you put under it is forced into one of those eight. There is no orange and no purple: an orange brick comes back as red or as yellow, and often as red one moment and yellow the next as the robot creeps along. Light blue and grey are the other classic pair to avoid — grey is neither black nor white, so it flips between them.
This is why colour mode is a good fit for a task you control and a bad fit for one you do not. Sorting the LEGO bricks that come in the set works, because they are made in exactly these colours. Reading a printed sheet, a coloured tile from another set, or anything pastel is asking the sensor to answer a question it does not have a word for.
Two practical points follow from how it decides. It shines its own lamp and looks at how much red, green and blue comes back, so it must be close — about half a centimetre, and no more than a centimetre. Lift it and the answer decays to 0. And because it takes those three readings before it can answer, colour mode is the slowest thing this sensor does; a robot driving quickly can pass right over a small patch without ever reporting it.
When a colour must be recognised reliably, test it. Drive the robot slowly over the real surface with color shown on the screen and watch what it actually says — including what it says at the edges between two colours, which is where the wrong answers live.
Colour, or brightness?
Both questions are asked of the same surface at the same moment. Watch the two answers travel across a strip of colours and then over the edge of a black line.
when program starts
forever
write 3 color at line 1
write 3 reflected light intensity at line 3
colour: 2 possible answers herereflected light: every value from 88 down to 8
The sensor sits a few millimetres above the surface, with its own lamp shining down.It travels across the coloured patches. One read-out names what it sees; the other says how much light came back.Now the edge of a black line. The name only ever says white or black — but the number slides all the way down, and every value in between means something.Names for sorting. Numbers for following.Finished. Same sensor, same surface, two very different kinds of answer.
reflected light 88
Watch the two read-outs over the last third of the strip. One of them changes once. The other changes the whole way across.
Over the patches, both read-outs are useful. Over the edge of the line they part company: the colour name has only two answers to give and jumps between them, while the number slides smoothly from 88 down to 8. Every value in that slide tells you how far onto the line the sensor is — which is information the name simply does not carry.
Use colour when the answer really is a name — sorting red bricks from blue ones, stopping on a green square.
Use reflected light when the answer is a matter of degree — following the edge of a black line, where the useful readings are all the greys between black and white.
A line follower built on colour names only knows “black” or “not black”, so it can only lurch. Built on reflected light it can tell how far onto the line it has drifted, which is what makes smooth following possible.
The third mode: ambient light
The first two modes both switch the sensor’s own lamp on and measure what bounces back off the surface. Ambient light intensity does the opposite: the lamp goes off, and the sensor simply reports how much light is arriving from wherever — 0 in the dark, up to 100 in bright light.
Mode
Own lamp
Measures
Points
colour
on
which of eight colours the surface is
at the surface, very close
reflected light
on
how much of its own light comes back
at the surface, very close
ambient light
off
how bright the surroundings are
wherever you want to measure
That makes it the only one of the three that is not really about the floor. A number between 0 and 100 means very little on its own, so watch the same sensor sit through five different rooms — nothing underneath it changes at any point.
the sensor’s own lamp is off — it is measuring the room
Start in the dark — a hand over the lens, or the lights off. Almost no light reaches the sensor, and it reports 0.Curtains drawn with one small lamp on. Enough to see by, and the sensor climbs to about 12.An ordinary classroom with the lights on sits somewhere around 38 — the middle of the scale, not the top of it.Move it beside a bright window and the same sensor, in the same room, reads about 72.A torch pointed straight into it pushes the reading to nearly 100 — which is how a light can be used as a signal to a robot.Finished. Same sensor, same floor underneath it — the only thing that changed was the room.
ambient 0
Nothing under the sensor changed at any point in this run. Ambient light is the one mode that is not asking about the surface at all.
Those are the shape of the scale rather than exact figures, but the shape is the useful part: a lit room is nowhere near 100, and the top of the range is reserved for a light pointed straight at the sensor. Cover it with your hand and the number drops to near zero — which is the easiest way to check the sensor is doing what you think.
Point it at the ceiling and it tells you whether the room lights are on; point it forwards and a torch will spike the reading, which is a way of signalling to a robot without touching it.
Do not reach for it as a substitute for reflected light. Room light falling on a black line and on white paper is almost the same, so ambient mode can barely tell them apart — the reason reflected light works is precisely that the sensor brings its own light and measures how much of it survives.
It is also the mode most at the mercy of the room. A reading taken by a window in the morning will not match the same spot in the afternoon, so anything built on ambient light needs measuring on the day, in the place, with the lights as they will be.
Light and height matter
Even the two lamp-on modes are affected by room lighting — a reading taken by a sunny window differs from one taken in a corner. The sensor must also sit close to the surface and at a constant height, because lifting it changes the reading even though the surface has not changed.
One random decision, in the place that needs it. Counting, safety and calibration stay predictable.
▶Pick randomThe block, its range, and why two calls in one pass give two different answers.Show meHide
ComponentData4 min
Random numbers
Sometimes a robot should not be predictable. A game that always asks the same question, or a creature that always turns the same way, stops being interesting after one run. A random number fixes that.
Blocks reference
Block
What it does
(pick random (1) to (10))
Reports a number between the two values, including both ends. A fresh number every time it runs.
(pick random (1.0) to (10.0))
The same range, but written with decimal points — so it reports decimals instead of whole numbers.
Whole numbers, or decimals?
This catches everybody once, because the two blocks look almost identical and behave completely differently. The block decides from what you typed, not from the size of the range:
Both ends written as whole numbers — (pick random (1) to (10)) — and you get whole numbers only. 1, 2, 3 … 10. Never 4.5.
Either end written with a decimal point — (pick random (1.0) to (10)) — and you get decimals: 4.5281749263, 9.9903, anything in between. A whole number is possible but vanishingly unlikely.
And both ends are included. That matters more than it sounds: (pick random (1) to (2)) has exactly two possible answers, not one, which is what makes it a coin toss. A range of whole numbers from a to b has b − a + 1 answers in it.
Type your own range below and press it. Then press it five hundred times.
pick randomto
(pick random (1) to (10))
→
—this pick10possible answers0picks so far
both ends written as whole numbers → whole numbers only1 and 10 can both come up
Only 10 answers exist here, and 1 and 10 are two of them — both ends are included, so the count is 10 − 1 + 1. Nothing lands between the marks.
Press pick a few more times. A handful of picks tells you nothing about whether it is fair.
Change 10 to 10.0 and nothing about the range changes — but the row of separate marks becomes an unbroken band, because the answers stop being a short list of possibilities and become anywhere in between. That is the whole rule, and it is the difference between one keystroke.
Keep the range sensible. A random turn between 1 and 360 degrees mostly looks like chaos; one between 30 and 90 looks like a creature deciding.
Where it goes
Dropped into a motor block it varies the movement; into a wait it varies the timing; into a display block it varies what is shown. Anywhere a number can go, a random number can go.
[A v] run [clockwise v] for (pick random (30) to (90)) [degrees v] :: motors
wait (pick random (1) to (4)) seconds :: control
write (pick random (1) to (6)) at line (1) :: display
Turning a random number into a random decision
The step that makes this block genuinely useful is feeding it into an if … then … else. On its own a random number varies how much something happens. Inside a decision it varies what happens at all.
The smallest version is the coin toss: 1 or 2, two branches, and a fifty-fifty chance of each. Here it is deciding how a driving base gets round an obstacle — one way it drives for three seconds and turns right, the other it drives for two and turns left.
when program starts :: events hat
set [coin v] to (pick random (1) to (2)) :: variables
if <(coin) = (1)> then
move [forward v] for (3) [seconds v] :: movement
move [right: 100 v] for (0.5) [rotations v] :: movement
else
move [forward v] for (2) [seconds v] :: movement
move [left: 100 v] for (0.5) [rotations v] :: movement
end
The same shape gives a motor a fifty-fifty chance of turning one way or the other — 90° or −90°. On the EV3 the sign lives in the direction dropdown rather than in the number, so −90° is written as counterclockwise 90:
when program starts :: events hat
set [coin v] to (pick random (1) to (2)) :: variables
if <(coin) = (1)> then
[A v] run [clockwise v] for (90) [degrees v] :: motors
else
[A v] run [counterclockwise v] for (90) [degrees v] :: motors
end
when program starts :: events hat
set [coin v] to (pick random (1) to (2)) :: variables
if <(coin) = (1)> then
move [forward v] for (3) [seconds v] :: movement
move [right: 100 v] for (0.5) [rotations v] :: movement
else
move [forward v] for (2) [seconds v] :: movement
move [left: 100 v] for (0.5) [rotations v] :: movement
end
—this run0runs so far0 / 0ones / twos
the if branch ranthe other one did not run at all
The program asks for a number between 1 and 2. Both ends count, so there are exactly two answers — a coin toss.One of them comes back, and it is stored before anything else happens. Every block after this depends on which.Only one branch runs. The other does not happen at all — not quickly, not quietly. It simply does not run.Run it again. Watch the tally rather than the robot: it is lumpy, and it is meant to be.Finished. Same program, and it will not necessarily do the same thing next time.
about to pick
Let it loop eight times. Both branches come up four times — and they do not take turns doing it, which is the part that looks like a bug and is not.
Two things are worth watching there. Only one branch runs — the other does not happen at all, so the robot ends up somewhere the other branch would never have put it. And the tally along the bottom is uneven: two 2s in a row, then two 1s. Over the eight runs it comes out four and four, but it does not get there by taking turns, and a program that looks broken for three runs in a row is usually just being random at you.
Storing the draw in a variable is not decoration here — it is required. The next section is why.
A new number every time it runs
This is the part that bites. The block does not hold a number — it produces one, freshly, each time it is reached. Use it twice and you have asked two questions and got two answers. Both creatures below turn a head one way and then back again.
store it, then reuse it
set [angle v] to (pick random (30) to (90)) :: variables
[A v] run [clockwise v] for (angle) [degrees v] :: motors
[A v] run [counterclockwise v] for (angle) [degrees v] :: motors
ask twice
[A v] run [clockwise v] for (pick random (30) to (90)) [degrees v] :: motors
[A v] run [counterclockwise v] for (pick random (30) to (90)) [degrees v] :: motors
A creature's head turns one way and then back again, by a random number of degrees between 30 and 90.Out. Both heads have turned by the number their random block gave them.Back. The left one turns by the angle it stored, so it lands exactly where it began. The right one asks the random block again — and gets a different number.Run it again. A new angle every time, which is the point — but only one of them comes home.Finished — and it will pick fresh numbers in a moment.
this run: 72° out
Let it loop. The angle changes every run on both creatures, as it should. Only the right-hand one also ends up facing somewhere new.
Both are unpredictable, which is what was wanted. But the one on the right asked the random block a second time for the return journey, so it turns back by a different amount and never comes home — by a different margin every run, which is exactly why the bug survives being tested a few times.
The fix is the one on the left. Ask once, store the answer, then use the store:
set [angle v] to (pick random (30) to (90)) :: variables
[A v] run [clockwise v] for (angle) [degrees v] :: motors
[A v] run [counterclockwise v] for (angle) [degrees v] :: motors
The same rule is why the coin toss above says set [coin v] to (pick random (1) to (2)) :: variables on its own line. Putting the random block straight into the if would work for one test and then fail strangely the moment anything below the if needed to know which way it went — because asking again is a fresh toss.
Advanced — picking a random thing, not a random number
A random number is rarely what you actually want. What you want is a random something: a move, a colour, a name. Put the two together and the number stops being the answer and becomes the position of the answer.
(item (pick random (1) to (length of [Names v])) of [Names v])
Read it from the inside out. (length of [Names v]) asks the list how many things are in it. The random block picks a position between 1 and that. (item () of [Names v]) fetches whatever is standing in that position.
Asking the list for its own length is the part to copy. Type the number in instead and the program works perfectly until the day somebody adds one more item — and then that item is never picked, silently, for ever. Try it below.
the range goes up to
when program starts :: events hat
clear display :: display
set [pick v] to (pick random (1) to (length of [Names v])) :: variables
write (item (pick) of [Names v]) at line (3) :: display
—the number picked—item at that position5length of Names0picks so far
The range is asked from the list itself, so adding a name is enough — press «add a name» and the new one is in the draw immediately.
Switch the range to the typed 5, add a name, and press pick 40 more. The counts under the new faces stay on zero. Nothing is misspelled, nothing reports an error, and one name simply never comes up — which is the same class of bug as the creature that never comes home, and just as hard to notice by running the program once.
It makes testing harder
This is the honest cost. A program with randomness in it behaves differently every run, so a bug that appears once may not appear again — and you cannot tell whether a fix worked from a single test. When hunting a bug in a random program, temporarily replace the random block with a fixed number, fix the bug, then put it back.
Say this back before moving on: “Which one thing here should be a surprise?”
What’s in this build 4 min
Run a ball up the belt by hand and watch where the Colour Sensor sees it. Everything depends on each ball being read in the same place, held still.
Part
What it is doing here
EV3 Intelligent Brick
The draw machine’s display. It announces each result and — the honest part — reports how many of each colour have come out.
Large Motor — the conveyor
Lifts balls to the sensor. Its speed must be steady and not random. If not, balls arrive at odd moments and the sensor reads between them.
Medium Motor — the gate
Sends each ball to a chute. Its positions are calibrated and fixed. The gate is never random. Only the choice of where to send it is.
Colour Sensor — which ball
Sorts each arrival into a group, like the Sorter in Level 2, Lesson 48. That includes the reject case for anything it does not know.
Touch Sensor — dispense
The user asks for a draw. One press gives one ball. The wait-for-release from Lesson 21 stops an eager finger emptying the machine.
The belt must deliver one ball at a time. If two arrive together, the sensor reads whichever is in front. Then the machine will draw a ball it did not really send. That bug looks like bad randomness, but it is not.
Ports — and the rule 4 min
Sensors go in ports 1, 2, 3, 4. Motors go in ports A, B, C, D. You cannot swap them. If you do, nothing warns you. The robot just will not work.
Part
Port
Why this one
Gate (Medium)
A
The positioning motor.
Conveyor (Large)
B
The one moving balls against gravity.
Dispense (Touch)
1
Touch stays on 1 across the course.
Which ball (Colour)
3
Colour stays on 3 across the course.
Check your own build now:
Gate in A, conveyor in B, button in 1, colour in 3.
Swing the gate to each chute by hand and note the degrees. These are calibrated positions. They are the part of this machine that must be the same every time.
Hold each ball colour at the sensor and confirm it reports reliably. Anything that does not is a reject.
Check the belt lifts a single ball cleanly without two riding together.
Connect the Brick 4 min
Two routes, and either is fine. USB is the reliable one and the one to fall back on when a room’s Bluetooth is busy; Bluetooth leaves the robot free to move, which some models need.
▶How to connect the BrickUSB and Bluetooth, step by step, with a photograph of every screen. Open it if you have not done this before — or if pairing is not working.Show meHide
USB — the reliable one
Switch the Brick on with the dark grey centre button.
Cable into the Brick’s PC port — the small square socket beside the numbered ports, not one of the numbered ones.
Other end into the computer.
Bluetooth — name it first
Do these in order. Naming the Brick after you go looking for it in the list is how groups end up driving each other’s robots.
Name your Brick. On the Brick: Settings (the spanner) → Brick Name. Type something nobody else will pick, then press the tick. Every Brick is called EV3 until somebody changes it.
Turn Bluetooth on. Settings → Bluetooth. Tick Bluetooth and Visibility. Leave iPhone/iPad/iPod unticked.
Connect from EV3 Classroom. Click the Brick icon at the top of the programming area, find your Brick by name, and click Connect.
Say yes on the Brick. It asks “Connect?” with the computer’s name — choose the tick, then accept the passkey, which is already 1234.
Where to read it. The name sits in the bar across the very top of the screen, on every screen — so you can check which Brick you are holding at any moment without going into a menu. This one is EV3VE. A Brick nobody has renamed says EV3.Step 3, and the reason step 1 exists. Three Bricks in range — read the name before you click Connect. Pairing with the wrong one is not an error: it works perfectly, on somebody else’s robot.
Step 2.Bluetooth switches the radio on; Visibility is what lets the computer find you. With Visibility off your Brick works perfectly and simply never appears in the list.Step 4. Look at the Brick. It asks whether to accept and names the computer. Choose the tick.Then the passkey, already 1234. Press the tick again and you are connected.
The two failures, every class, every time. The Brick has gone to sleep while you were building — press the centre button to wake it. Or you have paired with the group at the next table, which is why the name matters.
The long version, including Port View and how to read the port tiles, is in the Brick & Bluetooth guide.
Download and unplug for the real test. A draw machine is used by people standing round it. And the final challenge asks you to run a game for somebody else.
Confirm the connection 2 min
Check the Brick icon: connected, or not.
Two motor tiles — A and B.
Two sensor tiles — 1 and 3.
Write down the gate angle for each chute, and one spare for reject. These are the numbers that must never change. Everything else about the machine is allowed to surprise you.
Stuck? The long version, with a photograph of every screen, is in the Brick & Bluetooth guide.
Change it and test 8 min
One change at a time. Predict, then run, then look.
Draw thirty and record the three counts. Then thirty more. Compare. Then work out how far off perfectly even each run was.
Build a proper draw with no repeats. Fill a bag with the three chutes, draw from it, and delete the drawn one. Now the machine cannot repeat until the bag is empty. Say in one sentence how this is different from picking randomly.
Make it weighted. Pick 1 to 100 and send 1–70 to chute 1, 71–90 to chute 2, 91–100 to chute 3. Draw thirty and check the proportions.
Make the conveyor speed random between 10 and 90%. Watch the sensor start missing balls. This is randomness in a place it does not belong, and the failure looks like a sensor fault.
Add a debug override: holding Brick Left forces chute 1 every time. Then use it to test the gate positions. You cannot debug anything in a machine that will not repeat itself.
Count before you conclude. A run of the same result is what randomness looks like, not what broken looks like.
Where this part of Level 3 stops 3 min
Look at the program you have just written. A queue-style list. A classifier with a reject bin. Calibrated positions. Exact counts. One deliberate surprise.
Earlier in Level 3 a machine learned to correct itself and remember things. Now it can do much more. It can organise a waiting line, be taught, go and look, keep a number in a named box, and describe a place. It can work out what nobody measured, decide what matters most, and take an instruction. It can keep its place, let a counter decide when to stop, and know when to be unpredictable.
You can…
From
Hold a waiting line, and let a user teach a position
Lessons 25, 26
Search rather than wait, and move by a travelling wave
Lessons 27, 28
Keep a number in a named box, and turn a place into numbers
Lessons 29, 30
Compute what nothing measures, and decide what wins
Lessons 31, 32
Take a value from a person, and survive being interrupted
Lessons 33, 34
Let a counter decide, and be unpredictable on purpose
Lessons 35, 36
The rest of the Level 3 lessons put these together on harder models. Next is Red Light, Green Light, a referee that must catch a player who moves at the wrong moment. Level 4 takes them all onto a competition mat. There, calibration is the first thing you do at every table. The closed loop becomes a line follower. And a program that cannot be read cannot be fixed in the ten minutes before a run.
A machine you can trust does the same thing every time. The only exception is the one place built to surprise you.
This is what you are building: the EV3 Ball Conveyor.
Build it 15 min
Build the model before you read any further. Everything after this is about making it do something, and none of it will make much sense with nothing on the table in front of you.
Fullscreen it while you build — you can pause and scrub with the player's own controls.
Check the finished build against the picture before you switch anything on. A motor mounted the wrong way round is far easier to spot now than it is to debug later, when it looks like a program fault.
Make it move 10 min
Prove that random acts the way the lesson says before you build the machine round it. Nobody believes results bunch up until they have counted them.
Step 1 — count what random actually does
when program starts :: events hat
set [a v] to (0) :: variables
set [b v] to (0) :: variables
set [c v] to (0) :: variables
repeat (30)
set [r v] to (pick random (1) to (3)) :: variables
if <(r) = (1)> then
change [a v] by (1) :: variables
end
if <(r) = (2)> then
change [b v] by (1) :: variables
end
if <(r) = (3)> then
change [c v] by (1) :: variables
end
end
write (a) at line (2) :: display
write (b) at line (4) :: display
write (c) at line (6) :: display
Thirty draws. You will not get ten, ten, ten. Run it five times and write down every set. Then run it with 300 and see how much closer it gets.
Step 2 — the draw machine
```ev3blocks Search the program for pick random. There is exactly one, and every other line does the same thing every time.
when program starts :: events hat
delete all of [gate angle v] :: list
add (0) to [gate angle v] :: list
add (60) to [gate angle v] :: list
add (120) to [gate angle v] :: list
add (180) to [gate angle v] :: list
set [drawn v] to (0) :: variables
set [rejected v] to (0) :: variables
[A v] reset degrees counted :: motors
clear display :: display
forever
write [PRESS TO DRAW] at line (1) :: display
wait until <[1 v] is pressed? :: sensors>
wait until <not <[1 v] is pressed? :: sensors>> :: control
// ---- THE ONE RANDOM DECISION: which chute this draw sends to ----
set [chute v] to (pick random (1) to (3)) :: variables
// ---- everything below is rigidly predictable ----
write [DRAWING] at line (1) :: display
[B v] start motor at (35) % speed :: motors
wait until <([3 v] color) != [none v]> :: control
[B v] stop motor :: motors
wait (0.3) seconds :: control
set [seen v] to ([3 v] color) :: variables
set [known v] to (0) :: variables
if <<(seen) = [red v]> or <<(seen) = [blue v]> or <(seen) = [yellow v]>>> then
set [known v] to (1) :: variables
end
if <(known) = (1)> then
[A v] run to position (item ((chute) + (1)) of [gate angle v]) [degrees v] at (40) % speed :: motors
change [drawn v] by (1) :: variables
write (seen) at line (3) :: display
set status light to [green v] :: display
else
[A v] run to position (item (1) of [gate angle v]) [degrees v] at (40) % speed :: motors
change [rejected v] by (1) :: variables
write [UNKNOWN] at line (3) :: display
play sound [Mechanical / Error v] :: sound
set status light to [orange v] :: display
end
write (drawn) at line (5) :: display
write (rejected) at line (7) :: display
// release it
[B v] start motor at (35) % speed :: motors
wait until <([3 v] color) = [none v]> :: control
[B v] stop motor :: motors
end
1. **One random line, and you can point at it.** That is the test of whether randomness has been used carefully.
2. **The counts are not random.** Drawn and rejected are exact, because a count that varied would make the machine untrustworthy.
3. **The gate angles come from a list you measured.** Calibrated, from Lesson 12, and never a surprise.
4. **The reject path is the Sorter's from Level 2, Lesson 48**, unchanged. An unknown ball is announced, counted and sent to a known place.
**What success looks like:** press to draw and a ball goes to a chute you cannot predict. But the counts are exact, and unknown balls are rejected loudly. The gate hits the same angles every time.
> **If the same chute comes up four times running**, that is normal for randomness. It is not a fault. Draw thirty and count before you decide anything. That is exactly what step 1 was for.
Challenges 27 min
Work through them in order — each is harder than the last. The extra challenge comes after all three, and it is meant to make you plan before you build.
Challenge 1
Count what random really does.
Draw thirty times between one and three, and write down the three counts. Then do it again. Then do three hundred and compare.
Report all of it. Nobody believes that random results bunch together until they have counted it.
Challenge 2
Build a proper draw with no repeats.
Fill a bag with the three chutes. Draw from it by picking a position. Then delete the one you drew, so it cannot come again.
Say in one sentence how this is a different method from picking at random. It is not just a luckier version.
Challenge 3
Put randomness where it does not belong.
Make the conveyor speed random between 10 and 90 percent. Watch the sensor start missing balls.
Then take it out. Write one sentence on why this fault looks like a sensor problem but is not.
Extra challenge
Run a game for somebody else.
Build a draw machine. Use it to run a real game for people who have not seen it. It could be bingo, a raffle, a prize draw, or anything with a winner.
It must have:
1. Just ONE random decision in the whole program, and you can point at the line.
2. Every count is exact. Every gate position is calibrated. The reject path works.
3. A no-repeats draw, so the game has an end and finishes.
4. A debug override that forces the result. Use it while testing, and switch it off for the real game. You cannot debug a machine that will not do the same thing twice.
Afterwards, ask the players if they thought it was fair. Somebody will have had an unlucky run and thought it was a cheat.
Write down what you would say to them, using what you measured in challenge 1. A run of the same result is normal. Explaining that with numbers, not just saying so, is the last thing these lessons teach.
