Level 3 · Lesson 41 · EV3-L03-4160 minutes · Ages 9–16 · Model: EV3 Pen Arm
The Pen Arm: an arm that swings across the page, a carriage that slides in and out along it, and a small motor that lifts the pen off the paper.
Lesson 30 gave you coordinates — x across, y up. This machine cannot do either. It can only choose an angle and a distance along the arm, and every point on the page has to be said in those two.
By the end of the lesson your arm will draw a straight line — which sounds trivial and turns out to be the hardest thing this machine can do.
A record player’s tonearm pivots at one end and reaches across the disc. It has no left-and-right at all — its position is one angle, and everything about how the stylus meets the groove follows from that.
A radar dish reports a bearing and a range. A tower crane has a slew angle and a trolley position along the jib. A backhoe, a dental chair, a factory robot arm — all of them are joints that rotate, so all of them think in angles and reaches.
Because a pivot is cheap, strong and compact, and a long straight rail is none of those. An arm that swings can reach a large area from one small base.
The cost is that the machine’s natural numbers are not the page’s natural numbers. The drawing is in x and y. The motors are in angle and reach. Something has to translate, and that translation is the whole job of a robot’s controller.
Drive both motors straight from one point to the next and you get a curve. Not a wobbly line — a smooth, confident, wrong arc, which is much harder to spot as a bug. Every early plotter and every early robot arm made this exact mistake.
The machine’s axes are set by its joints. The drawing’s are not. Somebody has to convert.
Every point this arm can reach has two names. In the page’s language it is x across and y up. In the arm’s language it is a swing angle and a reach. The same dot; two descriptions.
| Page language (x, y) | Arm language (angle, reach) | |
|---|---|---|
| Good for | Describing the drawing. Straight lines are easy. | Driving the motors. There is one motor per number. |
| Bad for | Driving anything — no motor moves in x. | Straight lines. Equal steps in angle are bigger at the far end than the near end. |
Swing five degrees with the pen close to the pivot and it moves a few millimetres. Swing five degrees with the pen fully extended and it travels several centimetres. The same motor command means different things at different reaches — which is Lesson 39’s units problem again, but now it changes while the machine is running.
// a straight line is NOT "drive both motors to the end point" // it is many small steps, each one converted separately repeat (20) change [x v] by (step x) :: variables change [y v] by (step y) :: variables // convert this single point into the arm's language set [angle v] to (angle for x y) :: variables set [reach v] to (reach for x y) :: variables [B v] run to position (angle) [degrees v] at (25) % speed :: motors [A v] run to position (reach) [degrees v] at (25) % speed :: motors end
This is exactly what a real machine does. A CNC router or a 3D printer breaks every line into hundreds of tiny moves for the same reason. The fancy name is interpolation; the idea is that a curve made of enough short pieces is a line.
You could use sine and cosine. You do not have to. Measure instead, exactly as in Lesson 35: put the pen down at nine known angle-and-reach settings, mark where each landed, and measure the x and y of each mark with a ruler.
That table is the conversion. For points in between, split the difference — and the arm’s real geometry, gear slop included, is baked into numbers you measured rather than numbers you assumed.
Unknown module “motor-rotation”. It is not in the registry — check the id against app/lego_ev3/_modules/registry.ts.
Long before there were computers, people had exactly this problem. A shepherd counting sheep through a gate, a trader counting sacks of grain, a builder counting days — none of them can hold the number in their head while they get on with the work. So they scratched a mark on a wall, cut a notch in a stick, or wrote a number on a piece of paper. The number lived outside the person, in a place they had agreed on, and they could go back to it, read it, and change it.
Better still, once the number is written down somebody else can use it. Watch these two: one of them counts and writes, the other never sees a single animal and simply reads the wall.
Notice what never happens: Ben never asks Abby. He does not need to — the number is not in her head, it is on the wall, and the wall is there for anyone who needs it.
Neither Abby nor Ben is holding the number — the wall is. And notice what never happens: Ben does not ask Abby. He does not need to, because the count is not in her head. It is in a place they both agreed on, which is what makes it useful to more than one of them.
That is all a variable is. The robot cannot hold a number in its head either, so you give it a wall of its own, write a name at the top so everyone knows which wall is which — score, count, degree_turn — and the program can read what is on it and write something new. One part of the program writes; another part reads. Exactly Abby and Ben.
Say we are counting rotations of a motor. Before we start we write 0 on the paper. Every time the motor completes a turn we cross out what is there and write one more: 0 becomes 1, then 2, then 3. That is change — it has to read the old number to work out the new one.
set is the other thing you can do, and it is completely different: rub the whole paper out and write the number you want. It does not care what was there. Press the buttons and watch what happens to the crossings-out.
The paper starts blank, so we write 0 on it. That is what a variable is: a place to keep a number while the robot works.
| Block | What it does |
|---|---|
set [count v] to (0) | Puts a value in, replacing whatever was there. |
change [count v] by (1) | Adds to what is already there. |
(count) | Reports the current value, for use in a comparison or on the display. |
set replaces; change adds. Counting things needs change. Starting a count needs set. Both programs below have both blocks — the only difference is whether the set block is inside the loop or above it.
set before the loop
set inside it
Both programs contain both blocks. Only the position of set [count] to 0 is different.
The count on the right is not broken; it is being told to start again on every pass. Each time round the loop it is wiped back to zero and then changed by one, so the honest answer is always 1 — while the motor cheerfully turns four times. A counter stuck at 1 almost always means a set block that has slipped inside the loop.
EV3 Classroom tells you what a block does by its shape, and once you have noticed that, a whole set of questions answers itself:
So when a slot is oval, any oval fits it — and it does not matter in the least where that number came from. You can take the motor’s own A degrees counted and keep it in a variable you named degree_turn, then compare that with a number later. Pick an oval below and watch the same one drop into all three kinds of slot.
pick an oval
the same oval fits all three
Every one of those slots is oval-shaped, and A degrees counted is an oval — so it drops in. Nothing about where the number came from matters.
This is what makes a variable more than a counter. A sensor reading is true only at the instant you read it; copying it into a variable freezes it, so the robot can compare where it is now against where it was when something happened:
when program starts :: events hat [A v] reset degrees counted :: motors set [degree_turn v] to ([A v] degrees counted :: sensors) start moving [right: 30] :: movement wait until <(([A v] degrees counted :: sensors) - (degree_turn)) > (400)> stop moving :: movement
Read the condition aloud: how far the motor has gone now, minus where it was when we started, is more than 400. Both are ovals, so both can go into a subtraction, and the subtraction is an oval too — which is why it can go into a comparison. Ovals nest inside ovals as deep as you need.
A variable keeps its value after the program ends. Run the program again without setting it back and the second run begins where the first left off — the count starts at 14, the robot thinks it has already done the job. Every variable a program changes must be set to its starting value at the top.
A variable is the difference between a machine that repeats a fixed routine and one that responds to how things have gone — counting parts, tracking a score, remembering where it started.
The Touch Sensor is the simplest input the EV3 has: a button that is either pressed or not. That sounds trivial, but it is how a robot knows it has hit a wall, reached the end of a track, or been told to start by a person.
released
pressed| Block | What it does |
|---|---|
wait until <[1 v] is pressed? :: sensors> | Holds the program here until somebody presses the sensor. |
<[1 v] is pressed? :: sensors> | Reports true or false. Drop it into a condition to make a decision rather than a wait. |
[1 v] when [bumped v] :: events hat | Starts a whole stack of its own. The dropdown chooses the moment: pressed, released or bumped. |
A button is not only “pressed”. One press is three things: the moment it goes down, the time it stays down, and the moment it comes back up. Watch what a single press does to three programs at once.
versus two hat blocks
The middle counter is the one that surprises people. Nothing is wrong with it — a loop really does check that fast, and every check really is a separate answer.
Nothing there is broken. A loop really does get round hundreds of times a second, and each time it asks is pressed? the honest answer is still yes — so if that loop plays a sound or counts something, it does it hundreds of times from one finger. The two hat blocks each fire once, and they fire at different moments: pressed the instant the button goes down, bumped only when it comes back up.
The three options, and what each is for:
when program starts :: events hat set movement motors to [B v] and [C v] :: movement start moving [straight: 0] :: movement wait until <[1 v] is pressed? :: sensors> stop moving :: movement
The robot drives until something presses the sensor. Note that the movement is started unmeasured on purpose — the sensor decides when to stop, not a distance.
Touch sensors are everywhere in machines you cannot see into: a lift knows the doors are shut, a printer knows the lid is closed, a washing machine will not spin until it is latched. They are safety devices as much as inputs.
Describe the drawing in the page’s language. Convert one small step at a time.
Unknown module “motor-rotation”. It is not in the registry — check the id against app/lego_ev3/_modules/registry.ts.
Say this back before moving on: “Which language is this number in — the page’s or the arm’s?”
Push the pen to the far end of the arm and swing it by hand. Now bring it close to the pivot and swing the same amount. Compare the two marks on the paper. That difference is the entire difficulty of this lesson.
| Part | What it is doing here |
|---|---|
| EV3 Intelligent Brick | The controller — literally, in the industrial sense. Its whole job is translating between the drawing and the joints. |
| Large Motor — the swing | Turns the whole arm. Gear it down: a degree at the motor should be less than a degree at the arm, or the resolution at full reach is far too coarse to draw with. |
| Medium Motor — the reach | Slides the carriage in and out. Its degrees convert to centimetres through the rack or lead screw — a fixed number you measure once. |
| Medium Motor — the pen | Lifts and lowers. Two positions only. Every move between shapes must happen with it up, or the drawing is joined by lines nobody asked for. |
| Touch Sensor — home | The known angle everything is measured from. Without it, “30 degrees” means nothing — thirty degrees from where? |
Backlash will show up as a doubled line. Reverse the swing and the gears take up slack before the arm moves. Always approach a point from the same direction and the slack never appears — the same trick as Lesson 26.
Sensors go in ports 1, 2, 3, 4. Motors go in ports A, B, C, D. They are not interchangeable, and nothing will tell you politely if you swap them.
| Part | Port | Why this one |
|---|---|---|
| Reach (Medium) | A | The precise motor on the front port. |
| Swing (Large) | B | The strong one — it carries the whole arm. |
| Pen (Medium) | D | The small lift, out of the way of the two that matter. |
| Home (Touch) | 1 | Touch stays on 1 across the course. |
Check your own build now:
Two routes, and either is fine. USB is the reliable one and the one to fall back on when a room’s Bluetooth is busy; Bluetooth leaves the robot free to move, which some models need.
Do these in order. Naming the Brick after you go looking for it in the list is how groups end up driving each other’s robots.
EV3 until somebody changes it.EV3.The two failures, every class, every time. The Brick has gone to sleep while you were building — press the centre button to wake it. Or you have paired with the group at the next table, which is why the name matters.
The long version, including Port View and how to read the port tiles, is in the Brick & Bluetooth guide.
Bluetooth, and route nothing across the paper. A cable that drags on the sheet moves it, and a drawing machine whose paper moves cannot be calibrated at all.
Stuck? The long version, with a photograph of every screen, is in the Brick & Bluetooth guide.

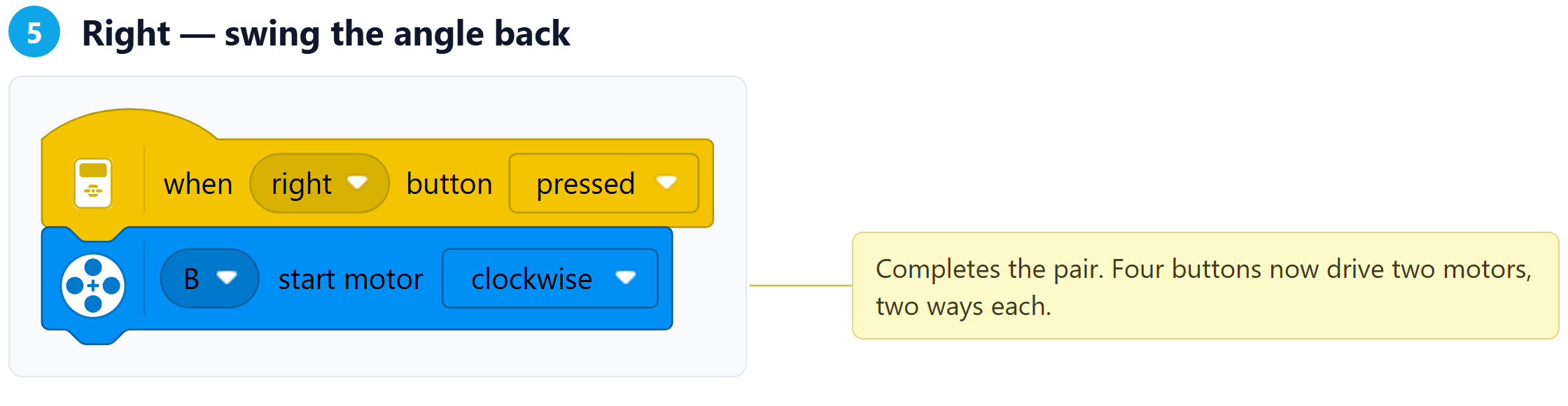

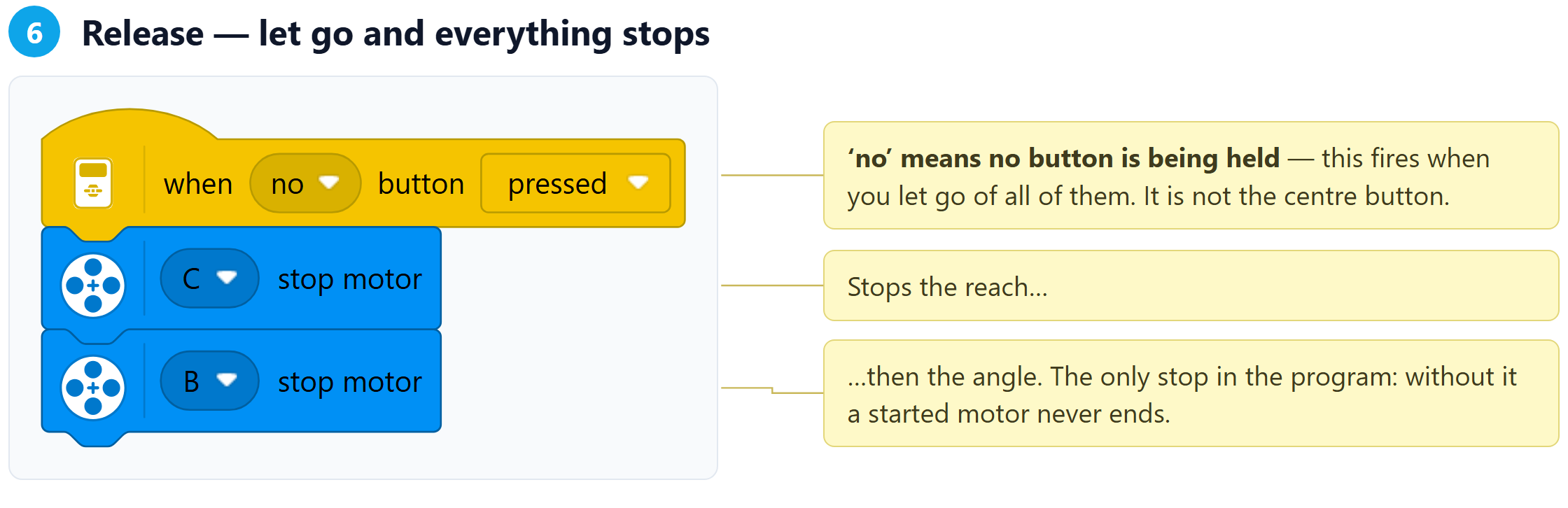

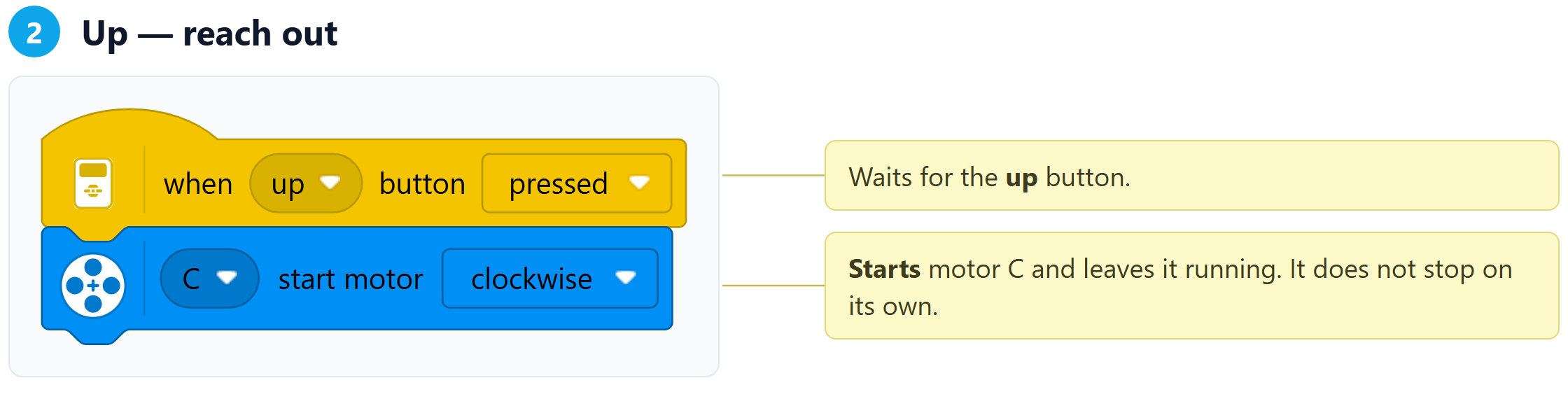

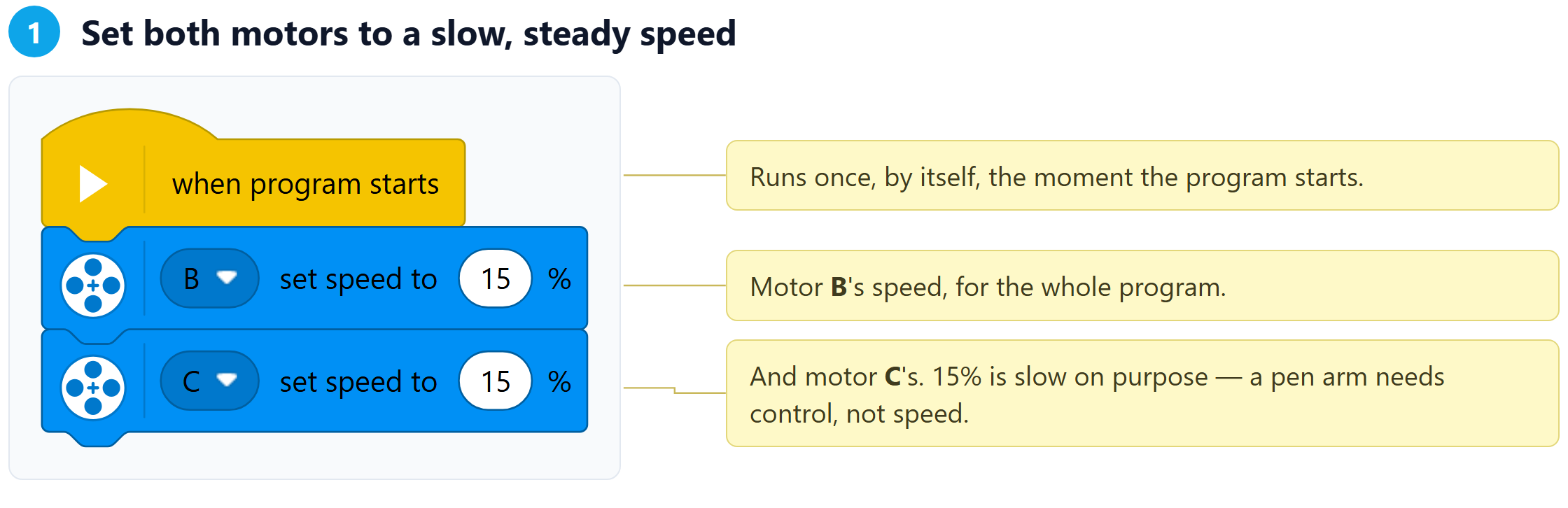

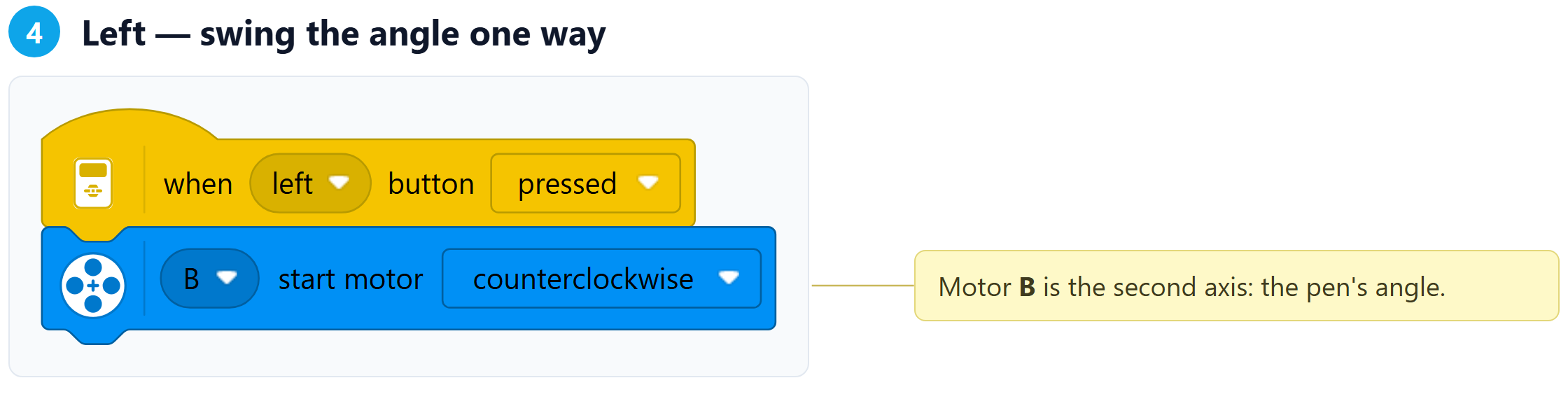

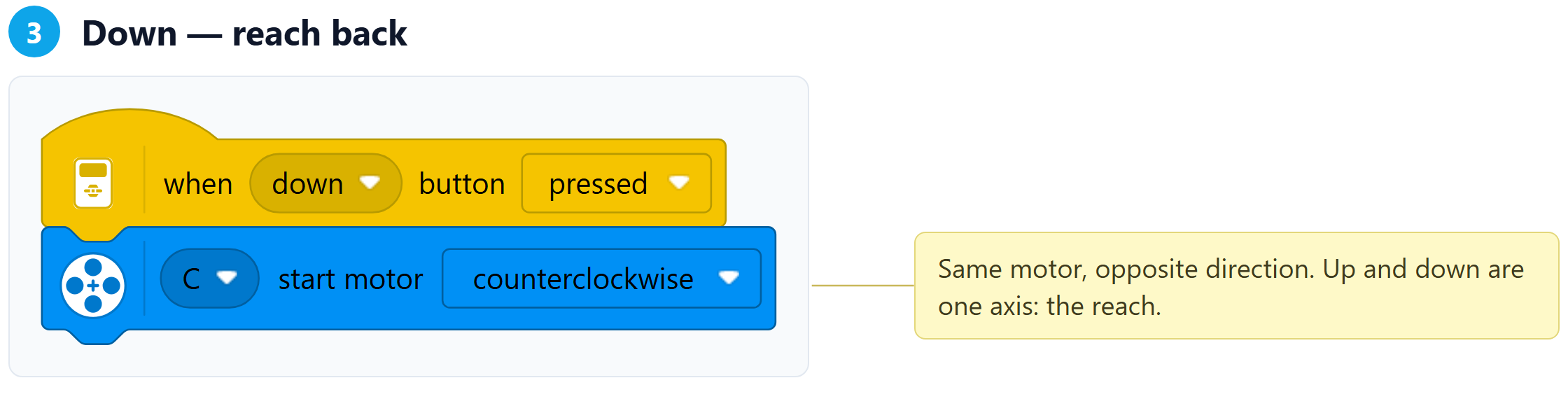

when program starts :: events hat
// swing back until the home stop, and call that zero
[B v] start motor [counterclockwise v] at (20) % speed :: motors
wait until <[1 v] is pressed? :: sensors>
[B v] stop motor :: motors
[B v] reset degrees counted :: motors
[A v] reset degrees counted :: motors
[D v] run to position (0) [degrees v] at (30) % speed :: motors
// nine dots: three angles by three reaches
set [a v] to (0) :: variables
repeat (3)
set [r v] to (0) :: variables
repeat (3)
[B v] run to position (a) [degrees v] at (25) % speed :: motors
[A v] run to position (r) [degrees v] at (25) % speed :: motors
[D v] run to position (60) [degrees v] at (40) % speed :: motors
wait (0.3) seconds :: control
[D v] run to position (0) [degrees v] at (40) % speed :: motors
change [r v] by (360) :: variables
end
change [a v] by (150) :: variables
endwhen program starts :: events hat [D v] run to position (60) [degrees v] at (40) % speed :: motors [B v] run to position (300) [degrees v] at (25) % speed :: motors [A v] run to position (720) [degrees v] at (25) % speed :: motors [D v] run to position (0) [degrees v] at (40) % speed :: motors
when program starts :: events hat // where the line starts and ends, in the PAGE's language (cm from the pivot) set [x1 v] to (6) :: variables set [y1 v] to (10) :: variables set [x2 v] to (16) :: variables set [y2 v] to (10) :: variables set [steps v] to (20) :: variables // from your nine-dot table set [deg per cm v] to (72) :: variables // reach motor degrees per cm set [deg per cm across v] to (9) :: variables // swing motor degrees per cm sideways, at 10cm out set [dx v] to (((x2) - (x1)) / (steps)) :: variables set [dy v] to (((y2) - (y1)) / (steps)) :: variables set [x v] to (x1) :: variables set [y v] to (y1) :: variables [D v] run to position (60) [degrees v] at (40) % speed :: motors repeat (steps) change [x v] by (dx) :: variables change [y v] by (dy) :: variables // convert THIS point into the arm's language set [reach v] to ((y) * (deg per cm)) :: variables set [angle v] to ((x) * (deg per cm across)) :: variables [A v] run to position (reach) [degrees v] at (25) % speed :: motors [B v] run to position (angle) [degrees v] at (25) % speed :: motors end [D v] run to position (0) [degrees v] at (40) % speed :: motors
x and y are the page. angle and reach are the arm. Keeping the two sets of names apart is what stops the confusion.What success looks like: two lines on the paper between the same two points — one visibly bowed, one straight enough to check with a ruler.
If the line is still bowed, raise the step count to forty. If it is jerky, the steps are too small for the gearing to resolve — lower it to ten and find the middle.
One change at a time. Predict, then run, then look. Keep every sheet — this lesson is judged on paper.
On this machine circles are easy and straight lines are hard. The machine’s geometry decides what is cheap.
The Pen Arm is judged on accuracy, and it is either right or wrong by a measurable number of millimetres.
The next model cannot be. The Scorpion has to decide whether something approaching is a threat, and it will sometimes be wrong in both directions — striking at a shadow, or failing to strike at a hand.
Those two mistakes do not cost the same, and that is what sets the threshold — not accuracy. A real scorpion rations its venom, so striking at nothing is expensive; missing a threat is worse. The number follows from the consequences.
Today the machine aimed exactly. Next it has to choose which mistake it can afford.
Build the model before you read any further. Everything after this is about making it do something, and none of it will make much sense with nothing on the table in front of you.
Use the viewer's own controls to zoom and turn pages. Fullscreen makes it big enough to build from.
The same build on Google Drive — sometimes a video, sometimes a scan:
Use the viewer's own controls to zoom and turn pages. Fullscreen makes it big enough to build from.
Check the finished build against the picture before you switch anything on. A motor mounted the wrong way round is far easier to spot now than it is to debug later, when it looks like a program fault.
Work through the challenges in order — each is harder than the last. The mission comes after all three, and it is meant to make you plan before you build.
Measure the conversion instead of assuming it. Draw the nine-dot grid, then measure each dot's x and y from the pivot with a ruler and write the table out. Report degrees per centimetre for the reach, and degrees per centimetre sideways at two different reaches. Those two sideways numbers should not match, and explaining why is the point.
Draw the same line five ways. One step, two, five, twenty, forty. Keep every sheet and lay them out in order. Report the step count at which you can no longer see the bow with a ruler, and the count at which the pen starts to jerk. The answer lives between them.
Draw the same line near the pivot and far from it. Use the same step count for both. The far one is worse. Say why in one sentence, using the words angle and distance. Then fix it by making the step count depend on the reach.
Draw something somebody asks for. Take a shape from another person — their initials, a logo, a simple diagram — and draw it with the arm. Requirements: 1. The shape stored as a list of x,y points in the page's language, kept completely separate from the drawing routine. 2. One routine that converts a point into angle and reach, used everywhere, written once. 3. Pen up between separate strokes, so nothing is joined that should not be. 4. Homing on the touch stop at start-up, and every point approached from the same direction so backlash never appears. 5. Straight lines straight enough to check with a ruler. Then swap shapes with another group and draw theirs without changing a single line of your program. If you had to edit the drawing routine to take their shape, the two things were not really separate — and separating the thing being drawn from the machine that draws it is what makes this a plotter rather than one very elaborate drawing.
